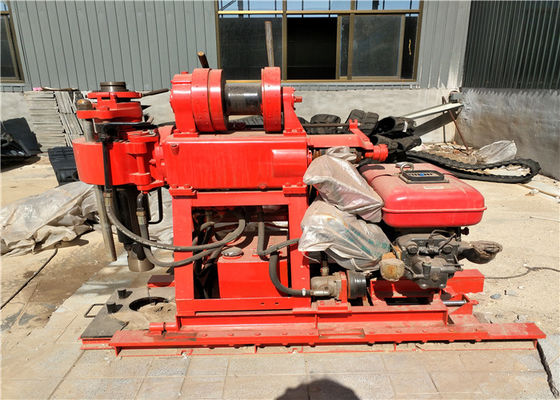

Low Speed Hydraulic Core Drilling Machine , XY-1B Water Borehole Drilling Equipment

Low Speed Hydraulic Core Drilling Machine , XY-1B Water Borehole Drilling Equipment
Low Speed Hydraulic Core Drilling Machine , XY-1B Water Borehole Drilling Equipment Low Speed Hydraulic Core Drilling Machine , XY-1B Water Borehole Drilling Equipment

Large Image :  Low Speed Hydraulic Core Drilling Machine , XY-1B Water Borehole Drilling Equipment

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1B
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Detailed Product Description
Engine: Diesel Power Model: XY-1B
Type: Rotary Drilling Rig Product Name: XY-1B Water Well Drill Rigs
Drilling Depth: 200m Drilling Diameter: 75mm
Drill Rod: 50mm Drill Angle: 45°-90°
Machinery Size:: 1433x697x1273
High Light:

water well borehole drilling rig

,

hydraulic water well drilling machine

Low Speed Hydraulic Core Drilling Machine , XY-1B Water Borehole Drilling Equipment



Introduction:



XY-1B Drilling Rig is a hydraulic-feed low speed drilling rig. To meet the needs of different consume with widely practical use,we advance XY-1B,drilling rig,which is added with water pump. The rig, water pump and diesel engine are installed on same base. We advance XY-1 B-2 Model drill, which is added with travel lower chuck.



1.1.1 The rig is suitable for survey and prospecting, geophysical exploration, roads and buildings and other exploration and play blasthole drilling bits projects.

1.1.2 Drilling bits can be chosen according to different strata .

1.1.3. Suitable for the 2-9 grade sandy clay and bedrock.

1.1.4 Rated drilling depth 100m, the deepest can not exceed 120m. Nominal hole diameter of 110mm, the maximum opening straight Diameter allowed to be 130mm, the final hole diameter of 75mm, drilling depth according to ground conditions.



Features



1.2.1 hydraulic automatic feed mechanism, improve drilling efficiency, reduce manual labor workers.

1.2.2. Ball holding mechanism instead of using the chuck, can implement non-stop down the lever, easy to operate, safe and reliable.

1.2.3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.

1.2.4 The handle centralized, easy to operate.

1.2.5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas.





2.1. Basic parameters



Borehole diameter 75,91,110,130,150,300mm
Drilling depth 200,150,100,70,50,30m
Drill pipe diameter 42,50,60mm
Angle range 90°-75°
Size(L*W*H) 1433*697*1273mm
Weight(without power unit) 525kg
Gyrator
Spindle speed(4-speed) 71, 142, 310, 620r/min
Spindle stroke 450mm
Upward max speed of spindle(no load) 0.05m/s
Downward max speed of spindle(no load) 0.067m/s
Max feeding force of spindle 15KN
Max lifting force of spindle 25KN
Max output torque of spindle 1.25KN.M
Hoist(winch)
Max.lifting capacity(single rope) 15KN
speed 19, 38, 84, 168r/min
Hoist drum linear velocity(two levels) 0.166, 0.331, 0.733, 1.465m/s
Drum dia 140mm
Wire rope dia 9.3m
Wire rope capability 35m
Brake dia 252mm
Brake belt width 50mm
Oil pump
Model YBC-12/125
Rated pressure 12.5Mpa
Displacement 12ml/r
Rated speed 2000r/min
Power(diesel engine or motor)
Model(diesel engine) ZS1115
Rated power 16.2kw
Rated speed 2200r/min
model (motor) Y160-4
Rated power 11kw
Rated speed 1460r/min



Low Speed Hydraulic Core Drilling Machine , XY-1B Water Borehole Drilling Equipment 0
