Product Details:
Payment & Shipping Terms:
|
| Model Number: | XY-2B | Type: | Hydraulic Water Well Drilling Rig |
|---|---|---|---|
| Power Type: | Diesel | Usage: | Water Well Drilling Rig |
| Drilling Angle: | 90°~65° | Vertical Capacity(KN): | 46 |
| Rated Power KW: | 22 | Motor: | Y180L-4 |
| High Light: | water borehole drilling equipment,hydraulic water well drilling machine |
||

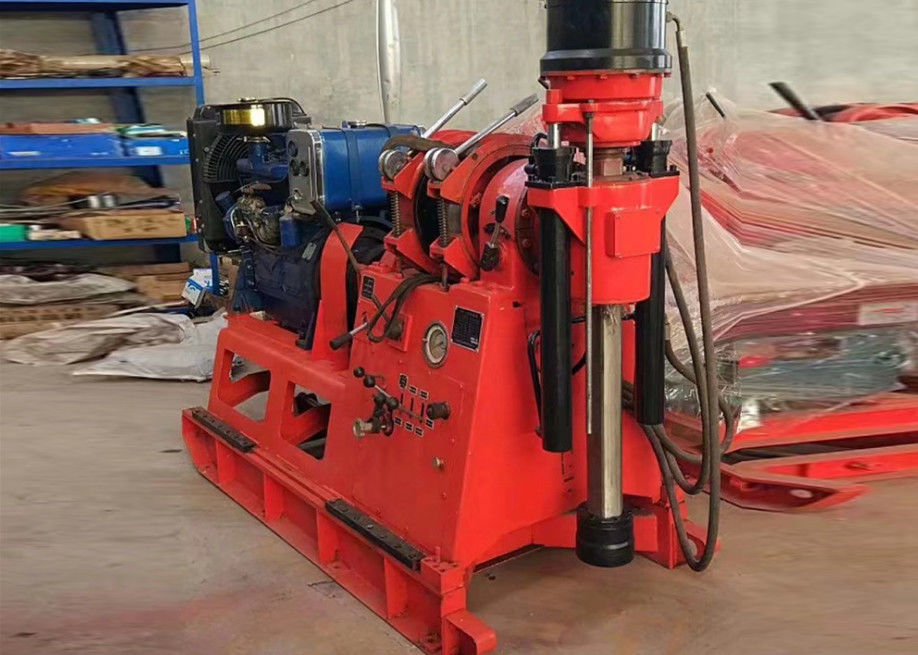

Popular Water Well Drilling Rig XY-2B For Water Wells / Soil Investigation
XY-2B drilling rig is a kind of medium shallow hole core drilling machine. The utility model has the advantages of small size, light weight, large power and wide range. It is especially available for constructions of hydroelectric power station, highway, railroad and harbor etc.
XY-2B drillrig derived from xy-2 drillrig, it not only keeps all performances of xy-2 drill, but also adds spindle inner hole diameter to 96mm. It is especially available for constructions of hydroelectric power station, highway, railroad and harbor etc. In common with xy-2 drill in all design but hydraulic chuck and rotary head modified.
Geological Drilling Rig Machine Technical Parameters:
|
Drilling depth (m)
|
Φ73 rod | 100 |
| Φ60 rod | 320 | |
| Φ50 rod | 380 | |
| Φ42 rod | 530 | |
| Spindle speed (r/min) | Forward | 57;99;157;217;270;470;742;1024 |
| Reverse | 45;212 | |
| Max torque (Nm) | 3330 | |
| Angle renge | 0-90° | |
| Spindle max pull force(KN) | 60 | |
| Spindle stroke (mm) | 560 | |
| Hoist max lift capacity with single rope (KN) | 30 | |
| Spindle inner dia (mm) | Φ96 | |
| Oil pump | CBK1020/8 twin-gear pump | |
| Power unit | Electric motor | Y180L-4,22kW |
| Diesel engine | 395K2,19.85kW | |
| Inner dia of spindle (mm) | 2220×900×1880 | |
| Drill weight(excluding power)(kg) | 1200 | |
Geological Drilling Rig Machine Main Features:
1. Very powerful at soil, sand, hard rock, etc. land condition.
2. Three kinds drill bits (three-wing bit, alloy bit and diamond bit) available for your choice, which can drill both soft and hard ground, especially diamond drill bit effective in drilling hard rocks.
3. Hydraulic control system for greatly improving the working efficiency, saving labor force.
4. Mounted wheel or trailer, can be hauled easily by car or tractor, convenient to transport.
5. Power can be diesel engine or electric motor, as per your request.
Tips to select a right drilling rig:
1. What kind of projects you will work for ?
Water well, Borehole, Exploration coring, Foundation Piling, Blast holes, Geothermal heat project or others?
2. Max drilling depth you want
100m, 150m, 200m, 300m, or other depth
3. The Min and Max borehole diameter you need
Like Max 200mm, Min 75mm.
