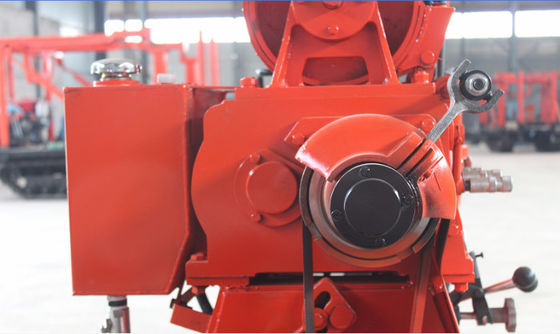

Safe Core Drill Rig XY-1 Easy Operation With Hydraulic Automatic Feeding Device

Safe Core Drill Rig XY-1 Easy Operation With Hydraulic Automatic Feeding Device
Safe Core Drill Rig XY-1 Easy Operation With Hydraulic Automatic Feeding Device Safe Core Drill Rig XY-1 Easy Operation With Hydraulic Automatic Feeding Device

Large Image :  Safe Core Drill Rig XY-1 Easy Operation With Hydraulic Automatic Feeding Device

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Detailed Product Description
Type: Water Well Drilling Rig Machine Power Type: Diesel
Model: XY-1 Application: Water Wells
Dimension(L*W*H): 1580*1080*1200mm Drilling Angle: 90° ~75°
Color: Red
Highlight:

rock core drilling machine

,

portable core drilling machine

Safe Core Drill Rig XY-1 Easy Operation With Hydraulic Automatic Feeding Device





XY-1 Core Drill Rig brief introduction



XY-1 core drilling rig is suited for the applications of general exploration and investigation, geophysical prospecting, road and construction surver, blast holes and other drilling operations.



XY-1 Core Drill Rig Technical parameters



Content Parameter Content Parameter
Drill Mud Pump
Drilling depth 100m Model Horizontal Reciprocating Single-Acting Piston Pump
Initial hole dia. 110mm Displacement Max.
Final hole dia. 75mm Equipped With Diesel Engine 95L/min
Drill rod dia. 42mm Equipped With Motor 77L/min
Angle range 90º~75º Allowable Working Pressure Max. 1.2MPa
Dimensions (L*W*H) 1640*1030*1440(mm) Continunous Working Pressure 0.7MPa
Swivel Head Suction Pipe Dia. 32mm
Spindle Speed(3-Speed) 142, 285, 570 (r/min) Discharge Pipe Dia. 25mm
Spindle Stroke 450mm Oil Pump
Spindle Pull-down max. 15KN Model YBC-12/125
Spindle Lifting Capacity max. 25KN Rated Presure 12.5MPa
Upward Displacement Speed of Idling Vertical Spindle 3m/min Displacement 8ml/r
Hoist Rated Speed 800~2500r/min
Max. Lifting Capacity (1-speed, single rope) 10KN Power (Diesel Engine or Motor)
Cable Volume (number) of Hoisting Drum 27m Model (Diesel Engine) ZS1100
Wire Rope Dia. 9.3mm Rated Power 12.1KW
Reel Speed 55, 110, 220 (r/min) Rated Speed 2200r/min
Reel Dia. 145mm Model (Motor) Y132M-4
Brake Dia. 230mm Rated Power 7.5KW
Brake Width 50mm Rated Speed 1440r/min



XY-1 Core Drill Rig Characteristics



1. With hydraulic automatic feeding device, elevated drilling efficiency.

2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.

3. Centralized handles, easy operation, safe and reliable.

4. The drilling rig, pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area.

5. Light weight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.



XY-1 Core Drill Rig Drilling method of pebble layer



1 conventional drilling methods and characteristics

At present, conventional drilling methods such as diamond drilling, clean water flushing, pipe reaming and mud circulation are generally used, while rotary drilling, dry drilling, pipe following, percussion, steel wire drill and other coring methods are used for core mining.

The disadvantages of these methods in drilling pebble layer are large drilling load, many accidents in the hole, low drilling efficiency and poor coring quality.

2. Drilling method and characteristics of diamond drilling tool combined with vegetable glue washing fluid

In order to meet the requirements of drilling in various hard and fragile formations, a series of single acting double barrel diamond drilling tools combined with vegetable gum washing fluid have been specially developed. It is also a relatively advanced method of drilling progressive cores in such formations at present. This method is a drilling process using vegetable gum as washing fluid and diamond as drilling tool.

The main characteristics of this process are small rotary resistance, high drilling efficiency, good coring quality, and strong ability to discharge sand and carry rock powder.



Safe Core Drill Rig XY-1 Easy Operation With Hydraulic Automatic Feeding Device 0Safe Core Drill Rig XY-1 Easy Operation With Hydraulic Automatic Feeding Device 1Safe Core Drill Rig XY-1 Easy Operation With Hydraulic Automatic Feeding Device 2Safe Core Drill Rig XY-1 Easy Operation With Hydraulic Automatic Feeding Device 3Safe Core Drill Rig XY-1 Easy Operation With Hydraulic Automatic Feeding Device 4Safe Core Drill Rig XY-1 Easy Operation With Hydraulic Automatic Feeding Device 5
