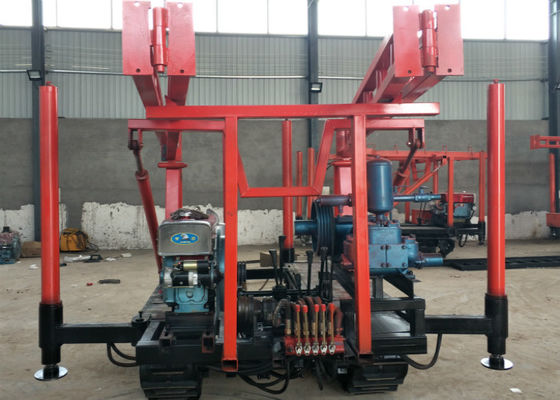

150m Depth Hydraulic Crawler Drilling Rig , XY-1B Geological Drilling Rig

150m Depth Hydraulic Crawler Drilling Rig , XY-1B Geological Drilling Rig
150m Depth Hydraulic Crawler Drilling Rig , XY-1B Geological Drilling Rig 150m Depth Hydraulic Crawler Drilling Rig , XY-1B Geological Drilling Rig

Large Image :  150m Depth Hydraulic Crawler Drilling Rig , XY-1B Geological Drilling Rig

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1B
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard export transportation package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 2000Set/Year
Detailed Product Description
Model: Xy-1 Name: Core Drilling Rig
Voltage: 380V Color: Red ,Yellow Or OEM
Weight:: 1750kg Usage: Water Well Drilling Rig Machine
Power Type: Electric
Highlight:

hydraulic crawler drilling rig

,

hydraulic borehole drilling machine





Features & Application


XY-1B drilling machine is designed on the basis of XY-1A. It is a kind of low speed and big torque portable drilling machine with hydraulic feeding.The drilling rig is equipped with a ball mounted card blessing mechanism with six side active drill rods. The utility model can perform no stopping and falling rod. And it has the advantages of high work efficiency, convenient operation, safety and reliability. It is compact, small in size, light in weight, strong in decomposition and easy to remove.



1.1 Engineering geological investigation of railways, hydropower, traffic, bridges, dam foundations and other buildings.
1.2 Geological core drilling, physical prospecting.
1.3 Small grout Confucius, drill hole drilling.
1.4 Small well drilling.



The Drilling Rig
The hole diameter (mm)
75, 91, 110, 130, 150, 300
Drilling depth (m)
150,100,70,50,30
Drill pipe diameter (mm)
42, 50
Drift angle of the drift hole(°)
90~75
Drill dimension(L * B * H)
1710 * 860 * 1360 (mm)
Rig weight (except engine)
580



Gyrator
Vertical shaft speed (4) (r/min)
71,142,310,620
Vertical stroke(mm)
450
Vertical light up the biggest movement speed (m/s)
0.05
Vertical racing down the biggest movement speed (m/s)
0.067
The largest vertical feed pressure (KN)
15
Vertical gravity (KN)
25
Vertical maximum output torque (KN• m)
1.5



Winch assembly
Maximum lifting capacity of hoist(single rope)
20
Drum rotational speed (r/min)
20,39, 85,170
Drum peripheral velocity (m/s)
0.172, 0.345, 0.738, 1.476
Drum diameter(mm)
140

 Wire diameter(mm)

9.3
Wire rope density (m)
40
The brake diameter(mm)
278
Brake band width (mm)
50



The water pump
type
Horizontal single cylinder double acting
Maximum displacement (motor) (L/min),
95 (77)
The maximum allowable pressure (Mpa)
1.2
Work pressure (Mpa)
0.7
Cylinder diameter (mm)
80
Piston stroke(mm)
100



The oil pump
Type
YBC -20/125
Nominal pressure (Mpa)
12.5
Nominal speed (r/min)
800-2500
The nominal flow rate (ml/r)
20



Engine (diesel or motor)
Diesel engine model
1110
Rated power (KW)
16.2
Rated speed (r/min),
2200
The rated pressure (Mpa)
12.5
Motor model
Y160M - 4
Rated power (KW)
11
Rated speed (r/min)
1460
