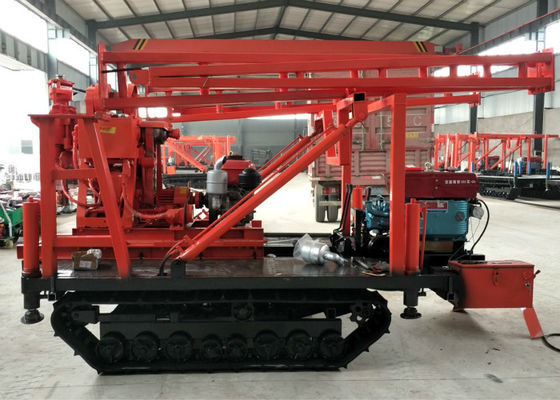

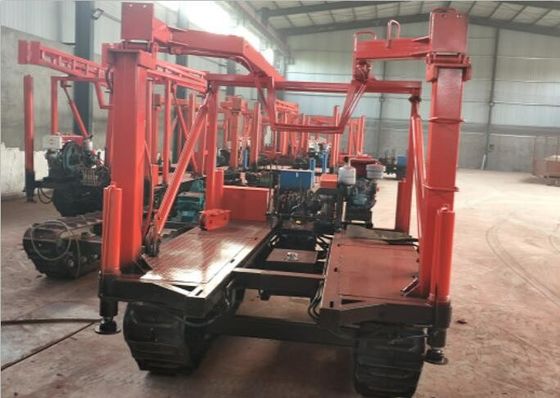

XY-200 Hydraulic Crawler Mounted Drill Rig For Stone Bore Hole CE Certification

XY-200 Hydraulic Crawler Mounted Drill Rig For Stone Bore Hole CE Certification
XY-200 Hydraulic Crawler Mounted Drill Rig For Stone Bore Hole CE Certification XY-200 Hydraulic Crawler Mounted Drill Rig For Stone Bore Hole CE Certification

Large Image :  XY-200 Hydraulic Crawler Mounted Drill Rig For Stone Bore Hole CE Certification

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-200
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Detailed Product Description
Type: Track Mounted Drill Rig Usage: Core Drill
Voltage: 380V Model Number: XY-200
Weight: 500kg Rated Drilling Depth: 200m
Highlight:

hydraulic crawler drilling machine

,

track mounted drilling machine



XY-200 Hydraulic Crawler Mounted Drill Rig For Stone Bore Hole CE Certification



Product Description


XY-200 drilling rig is mainly a collection of functions and features of the popular market XY-1, XY-1B, XY-1A other small rigs.It is a light larger torque rotary rigs which uses XY-1 hydraulic automatic infeed, a wide range of large modulus gear transmission of XY-1B's, XY-1A Wide range speed. Suitable for geological survey and prospecting, exploration roads and building exploration , high-speed grouting detection hole, blast hole, small wells, small pile hole drilling, etc. Divided into three types of XY-200, XY-200 (YJ) (with the shift function) and XY-200 (YJ) with pump.

Crawler Mounted Drilling Rig for Stone Bore Hole Main Parameter

(1) Rated drilling depth:200m,The deepest shall not exceed 220m.

Rated opening diameter:200mm.

Maximum opening diameter : 300mm.

Drilling depth and drilling diameter shall be determined according to the formation conditions.
(2) The vertical speed (four steps):118,236,505,1010.r/rain
(3) Max output torque:1500N. m
(4) Maximum weight (a speed of single rope):17KN
(5) drill pipe diameter:42mm
(6) Borehole inclination:90~75°
(7) Rig overall dimensions·(L×B×H)1433×697×1273mm
(8) Rig weight:500kg(Transfer machines 620kg, transfer machine with pump 720kg)
(9) Engine model:S1115



Drilling rig Feature

1  Hydraulic-control drill mast, can be raised and put down by hydraulic cylinders,which saves time and worker labor.
2 Rubber track,the weight is lighter and does not hurt urban road, suitable for projects in city.
3 Four hydraulic jacks, can lift the machine to max.height 1.3m,so that the machine can be loaded onto and unloaded from truck compartment.Also they can be used for rig leveling and support at work.
4 Optional installation of hydraulic twist tube machine(75-168mm),improve work efficiency and reduce labor costs.
