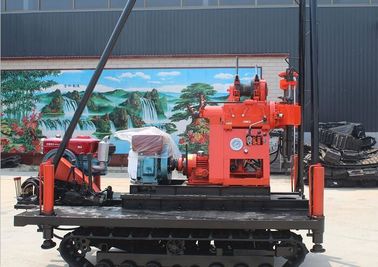

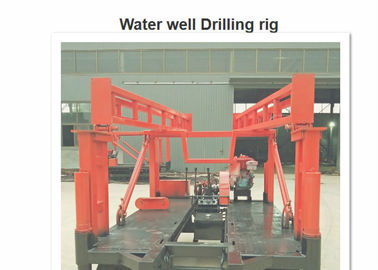

Full Hydraulic Crawler Mounted Drill Rig 220V / 380V Crawler Drilling Rig
Product Introduction:
Small diesel hydraulic well drilling machines are used for household well drilling, factory well drilling, domestic water extraction, irrigation wells in farmland, installation of water air conditioning, solar water heaters, and pile driving on construction sites.
Drilling rig parameters
|
Basic Data
|
Specs |
Value |
Gyrator |
Specs |
Value |
|
Hole Diameter
(mm)
|
75 |
91 |
110 |
130 |
150 |
300 |
|
Rotation rate(r/min) |
115 230 505 1010 |
| Drilling Depth (m) |
200 |
150 |
100 |
70 |
50 |
30 |
Vertical axis stroke(mm) |
450 |
| Drilling Rod Diameter(mm) |
60 50 42 |
|
Unload Max upward movement speed (m/s) |
0.05 |
| Drilling Angle |
90°— 75° |
downward movement speed(m/s) |
0.067 |
| Weight(kg) |
525 |
Vertical max feed force(KN) |
15 |
| Overall Dimensions(mm) |
1433*697*1273 |
Max lifting force of vertical (KN) |
25 |
| hoist |
Lifting Force(kN) |
15 |
Oil pump |
Model |
Gear Oil Pump |
| Reel speed (second layer) m/s |
0.166 0.331 0.733 1.465 |
Rated speed (r/min) |
2000 |
| Rated pressure (MPa) |
12.5 |
| Drum speed (r/min) |
19 38 84 168 |
Displacement (L/r) |
20 |
| Drum diameter (mm) |
140 |
Power Machine |
Model |
Motor |
Diesel Engine |
| Wire diameter (mm) |
9.3 |
Power(KW) |
11 |
16.2 |
| Steel wire capacity (m) |
35 |
Speed(r/min) |
1460 |
2200 |
Product advantages:
1. The drilling rig adopts an automatic telescopic drilling tower, supported by two oil cylinders, and controlled by a set of hydraulic valves to lay the drilling tower on its back. The operation is time-saving and labor-saving, feasible, and can greatly create benefits for users.
2. The chassis adopts rubber tracks, which are lightweight and have a low life cycle cost. They can reduce the noise of the vehicle's walking mechanism, reduce vehicle vibration, and significantly reduce fuel consumption. They can be used on urban roads.
3. The chassis comes with four threaded support legs (or hydraulic high support legs) for quick and convenient installation and adjustment. It can be used for leveling the work plane, reducing lifting costs and improving efficiency during loading and unloading. It can also serve as auxiliary support during operation.
4. By using a 24V electric starting diesel engine, the operator's labor intensity can be greatly reduced. In cold seasons, when the diesel engine is difficult to start, the advantages of this drilling rig are demonstrated.
5. This machine is equipped with a BW-160 mud pump, with high pump flow and pressure, convenient maintenance and repair, and easy to purchase spare parts from various places.
Four aspects of rural water wells
1, Select appropriate well type
The well types of water source wells are divided into deep wells, large wells, counterpart pumping wells, foreign wells, and small-diameter tube wells. In areas with abundant deep groundwater, it is appropriate to drill deep wells. In areas with abundant shallow groundwater, it is appropriate to drill large wells, counterpart pumping or small-diameter tube wells.
2, Reasonable well layout
The location and layout of wells shall be reasonably arranged according to the local actual hydro geological conditions. If there is no hydro geological data, refer to the existing water source wells around as the basis for the layout of wells. In areas where shallow groundwater is not abundant, shallow wells should not be drilled blindly; In areas with abundant shallow groundwater, it is suitable for farmers to build their own shallow wells, but the well hole layout should not be too dense to avoid the interaction between adjacent water source wells.
3, Configure appropriate water pump
After the well is completed, measure the water level of the water outlet well and the corresponding water output according to the drainage condition of the drilling machine, and then determine the total head of the water pump according to the height difference from the ground to the dynamic water level and the irrigation method you adopt, and the required working head of the water pump. The flow of the water pump shall not exceed the water flow through the well. The corresponding water pump shall be purchased on the premise of the above two items.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
