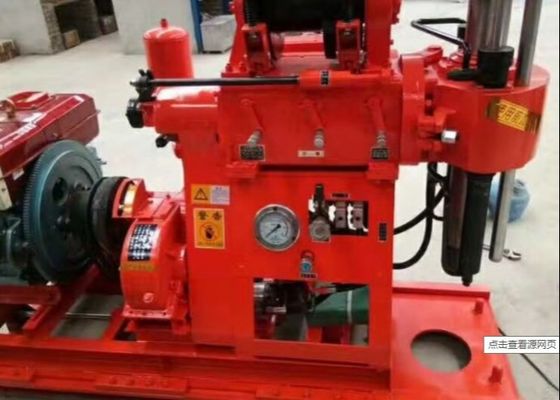

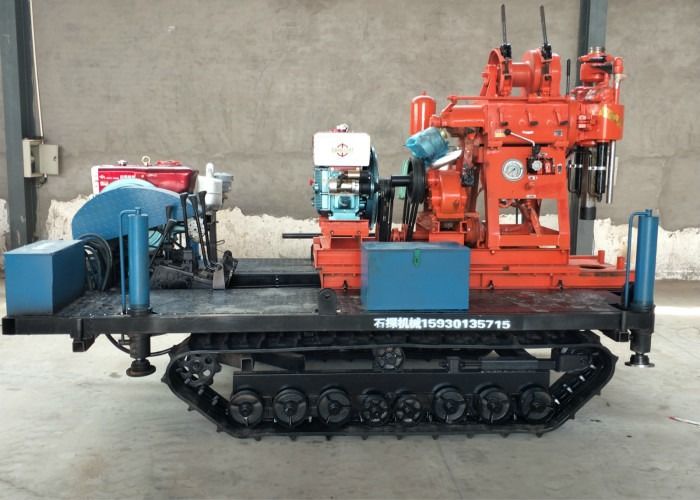

Gk 200 Exploration Drilling Machine,Geological Drilling Rig Machine

Gk 200 Exploration Drilling Machine,Geological Drilling Rig Machine
Gk 200 Exploration Drilling Machine,Geological Drilling Rig Machine
video play

Large Image :  Gk 200 Exploration Drilling Machine,Geological Drilling Rig Machine

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: GK-200
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: exported packing
Delivery Time: Within 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 sets/year
Detailed Product Description
Product Name: GK 200 Geological Drilling Rig Machine Drilling Depth: 200 M
Drilling Hole Diameter: 300 Mm Drilling Rod: 50mm
Power: Diesel Engine Mud Pump: BW 160
After Sale Service: Video Support Warranty: 12 Months
Highlight:

water borehole drilling machine

,

down the hole drill rig

GK 200 Geological Drilling Rig Machine





Product Description



GK200 is a lightweight shallow hole rig which can be drilling depth max 200M,diamter 75-300mm,with oil pressure feed.It is used for geological general investigation and exploration,road and tall buliding foundation exploration,kinds of hole in concrete structure,river levees,subgrade grouting hole drilling and driect grouting,civil wells and earth temperature entral air-conditioner,etc.



Product Parameter:



Drilling Dia 70mm 93mm 150mm 200mm 300mm
Drilling Depth 350m 280m 220m 120m
Swive Head



Spindle Speed (r/min)

Forward 58 101 160 221 234 406 640
Reverse 46 183
Maximum Torque 3000N*m
Spindle Stroke 600mm
Maximum Cylinder lifting force 60KN
Maximum Cylinder driving force 45KN
Hoist
Bobbin Diameter 200mm
Rope Diameter 14mm
Rope Capacity(5 floor) 45m
Lifting Capacity(single pipe) 30KN
Bobbin line speed (the second layer) 0.45 0.785 1.24 1.71m/s
Mobile Oil Cylinder Stroke 460mm
Distance of Step Aside The Hole 260mm
Oil Pump
Name Wheel oil pump
Type CB-E25
Displacement 25mL/min
Normal Rated Speed 1500 r/min
Normal Pressure 16MPa
Maximum Pressure 20MPa
Power Diesel Engine Motor
Type 395K2 Y180L-4
Rated Power 20KW 22KW
Rated Speed 1500r/min 1470r/min
Dimensions 2510*950*1820mm
Weight(power not incluced) 1300kg



Product Main Features



1. Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.
2. With hydro-automatic feeding device, and high drilling efficiency.
3. Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.
4. Close levers, convenient to operate, safe and reliable operations.
5. Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.
6. Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.



What are the safety precautions for geological exploration?



1. The geological exploration unit shall establish safety files for the geological exploration work area, including animal, plant and microbial injury sources, epidemic infectious diseases, epidemic infectious sources, natural environment, human geography and traffic conditions. The safety file information and preventive measures in the geological exploration work area shall be disclosed to the field operators in a timely manner.

2. Geological exploration units shall provide field survival guides and survival kits for field geological exploration operators, and provide effective radio communication equipment for field geological exploration project teams in difficult and dangerous areas.



Gk 200 Exploration Drilling Machine,Geological Drilling Rig Machine 0

Gk 200 Exploration Drilling Machine,Geological Drilling Rig Machine 1Gk 200 Exploration Drilling Machine,Geological Drilling Rig Machine 2

Gk 200 Exploration Drilling Machine,Geological Drilling Rig Machine 3Gk 200 Exploration Drilling Machine,Geological Drilling Rig Machine 4

Gk 200 Exploration Drilling Machine,Geological Drilling Rig Machine 5Gk 200 Exploration Drilling Machine,Geological Drilling Rig Machine 6Gk 200 Exploration Drilling Machine,Geological Drilling Rig Machine 7Gk 200 Exploration Drilling Machine,Geological Drilling Rig Machine 8
