| Product Name: | XY-1 Exploration Core Rig , Geological Drilling Rig Machine | Drilling Depth: | 100m |
|---|---|---|---|
| Drilling Hole Diameter: | 100mm | Type: | Geological Drilling Rig Machine |
| Voltage: | 220v | Place Of Origin: | Jinzhou ,China |
| Usage: | Water Well | Color: | Yellow,Red And Blue |
| Highlight: | dth drilling machine,down the hole drill rig |
||

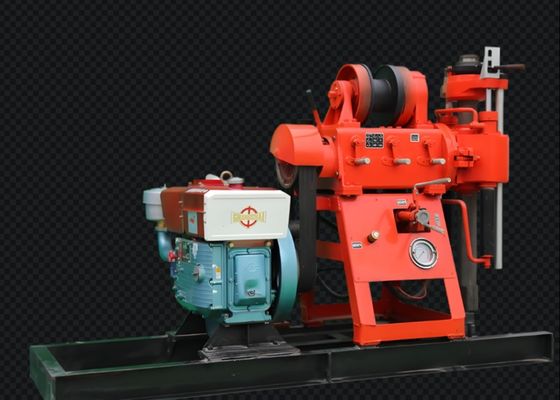

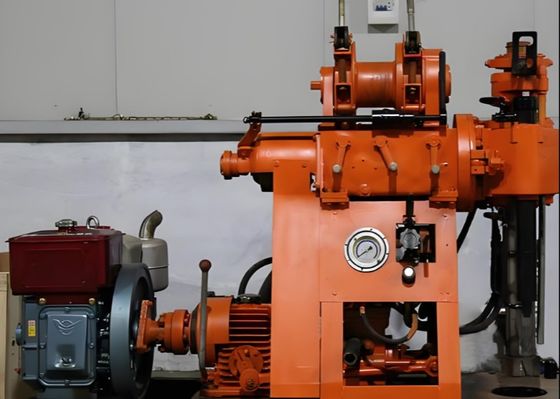

XY -1 100 Meters Customized Geological Drilling Rig Machine
XY-1 Geological Drilling Rig Machine Information
XY-1 is a portable and multi-purpose drilling rig for engineering investigationIt is mainly used for the general survey and engineering geological investigation of solid deposits, and various inspection holes of concrete structures.
The Engineering Drilling Rig is ideal for geological and core drilling applications. Its advanced design and robust construction make it perfect for a variety of applications including mineral exploration, engineering drilling, foundation work, geotechnical investigations, soil sampling and more. It is reliable, easy to operate and maintain, and features a high-performance engine for efficient power delivery.
The Engineering Drilling Rig is the perfect choice for a wide range of drilling operations. Its superior design and construction make it an ideal choice for drilling in various environments. The rig is reliable, efficient and cost-effective. It has a high level of accuracy and precision, and is designed for long-term durability. So, whether you are conducting geological or core drilling operations, the Engineering Drilling Rig is the perfect choice.
XY-1 Geological Drilling Rig Machine Technical Parameters:
| Basics | Drill depth (m) | 100 |
| Drill hole(mm) | 75-100 | |
| Final hole (mm) | 75 | |
| Rod diameter (mm) | 42/50 | |
| Drill angle (Degree) | 75-90 | |
| Size(LxWxH)mm | 1710x8500x1340 | |
| Weight (kg) | 500 | |
| Spindle | Spindle speed (r/min) | 1010/790/470/295/140 |
| Travel (mm) | 450 | |
| Max. Pressure (kN) | 15 | |
| Lifting force (kN) | 25 | |
| Hoist | Maxing lifting force (kN) | 15 |
| Drum speed (r/min) | 121/76/36 | |
| Drum diameter (mm) | 140 | |
| Steel rope diameter (mm) | 9.1-12 | |
| Steel rope capacity | 35 | |
| Brake diameter (mm) | 252 | |
| Brake band width (mm) | 50 | |
| Oil Pump | Model | YB-20/125 |
| Rated pressure (Mpa) | 12.5 | |
| Flow rate (ml/r) | 20 | |
| Rated speed (r/min) | 1500 | |
| Diesel engine | Model | ZS1105(18HP) |
| Nominal speed (r/min) | 2200 | |
| Power(Kw) | 13.3 |
XY-1 Geological Drilling Rig Machine Applications
1. With a hydraulic feed mechanism, improve drilling efficiency and reduce the labor intensity of workers.
2. The drilling rig is equipped with an upper ball clamping mechanism and a hexagonal active drill rod, which can be used to
reverse the rod without stopping the machine.
3. Equipped with a pressure gauge at the bottom of the hole, indicating the pressure to facilitate the grasp of the situation in the hole.
4. The handle is convenient for centralized operation.
5. The drilling rig has a compact structure, small size, lightweight, strong decomposability, easy to move, suitable for working in plains or mountainous areas.
XY-1 Geological Drilling Rig Machine FAQ
Q1.How to choose a drilling rig?
Ans.: It has different models used for all kinds of hole diameter and depth, it is the best choice for drilling works.
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
Q4.What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for a new one.
And we provide videos for machine install and operation.
