Product Details:
Payment & Shipping Terms:
|
| Model Number: | XY-1A | Type: | Hydraulic Core Drilling Machine |
|---|---|---|---|
| Power Type: | Diesel | Usage: | Water Well,railways, Core Drilling, Physical Prospecting |
| Voltage: | 220V | ||
| High Light: | water borehole drilling equipment,hydraulic water well drilling machine |
||

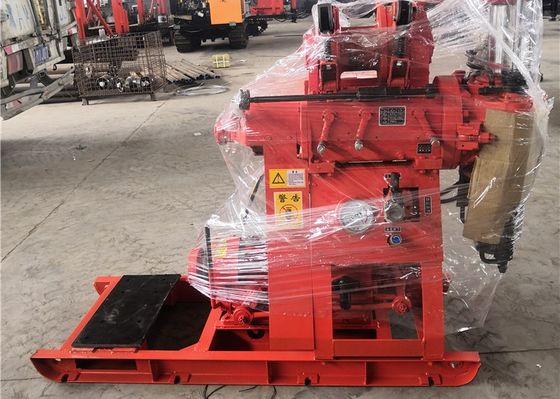

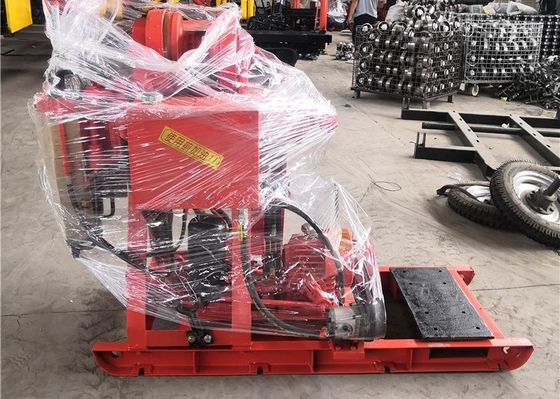

Full Hydraulic Portable Borehole Drilling Machine For Physical Prospecting
XY-1A water well drilling rig Drill depth:180m Drill diameter:220mm Easy to operate&transport Lightweight / compact structure
In the steering and braking structure, single axle steering brake replaces the original the double axle gear brake, which greatly reduces the attrition degree of wear parts.
Main parameters
| Unity machine parameter | |
| Drilling depth | 30--180m |
| Drill rod caliber | 50 42mm |
| End hole caliber | 75 46mm |
| Max. open hloe caliber | 220mm |
| Drilling angle | 90°~75° |
| Drill weight (No include power) | 610kg |
| Unity machine dimensions | 2.1×0.9×1.3m |
| Spindle | |
| spindle speed | 130, 300, 480, 730, 830, 1045r/min |
| Spindle stroke | 450mm |
| Hoist | |
| Max.single line hoisting capacity | 1600kg |
| Single line lifting speed | 1.06, 0.67, 0.32m/s |
| Wirerope caliber | 13mm |
| Wirerope cubic measure | 35m |
| Hug floodgate caliber | 254mm |
| Hug folldgate belt width | 50mm |
| Distance between drill and hole | 230mm |
| Mud pump | |
| Type | Horizontal single urn twin-action |
| Displacement | 170L/min |
| Maximum pressure | 1.5Mpa |
| Work pressure | 0.7Mpa |
| Power | |
| Diesle engine | S1105 18HP |
| Electric motor | Y160M—4 15KW |
Features of XY-1A High Speed Core Drilling Rig
a. five gears, and the highest speed can reach 1045r/min, improving drill efficiency
b. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.
c. the machine is equipped with national patent technology---taper clutch, with charactristics of strong transmission troque, easy operation and free maintenance.
d. for the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.
e. Vertical spidle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.
FAQ
A: Generally it is 10-20 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
A:Sorry, free sample is not available.
