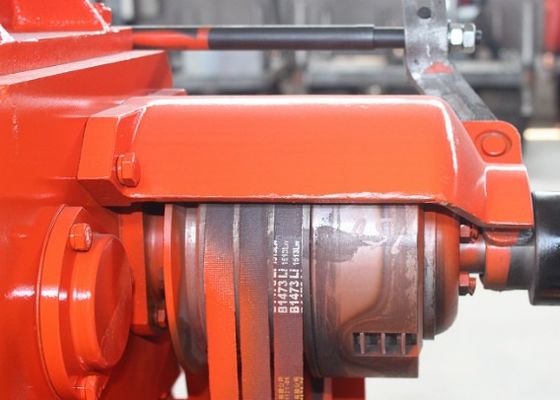

Red GK200 Engineering Drilling Rig , High Speed Portable Core Drilling Machine

Red GK200  Engineering Drilling Rig , High Speed Portable Core Drilling Machine
Red GK200  Engineering Drilling Rig , High Speed Portable Core Drilling Machine Red GK200  Engineering Drilling Rig , High Speed Portable Core Drilling Machine

Large Image :  Red GK200 Engineering Drilling Rig , High Speed Portable Core Drilling Machine

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: GK200
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Detailed Product Description
Product Name: Water Well Drilling Rig Feature: High Drilling Efficiency
Model Number:: GK200 End Hole Caliber:: 75mm
COLOR: Red Stroke:: 560mm
Usage:: Coal Voltage:: 220V / 380V
High Light:

water well borehole drilling rig

,

water borehole drilling equipment

Red GK200 Engineering Drilling Rig , High Speed Portable Core Drilling Machine





GK200 Features



Equip hydraulic chuck,it can complete no-stopping rotating.Big inner diameter,use big or middle hexagonal driving lever.
Light in weight,easy disassembling for transportation and applicable to workingconditions in plain and mountain areas.Suit scopeGeological exploration water and electricity engineering,road and railroad construction,build engineering and big diameter water well construction project etc.

GK200 Main Parameter

GK-200 Type
Drill Swivel Head

Drilling depth



Max.200m

Spindle speed



(4-speed)

115 230 505 1010r/m

Hole diameter



Max.300mm Spindle stroke 450kmm
Drill rod diameter 50mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-20/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.2Mpa
Flow speed 20ml/r
Rated speed 2000r/min
Hoist Power(diesel)
Max. lifting capacity 15KN Model(diesel engine) 1115
Hoisting drum revolution 20.39.85.170r/m Rated power 20KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 525KG
SIZE 1433x697x1273mm



GK200 Advantages as below


★ Hydraulic feeding mechanism can improve drilling efficient,reducing labor work
★ The rig equipped with a ball on a cassette holding mechanism and a six driving drill pipe.double guide,the drilling rod can be replaced without shutdown ------------high efficient,convenient operation,safe and reliable
★ Equipped with hole bottom pressure indicator, you can know the situation inside the hole
★ Handle centered ,convenient operation
★ The drilling machine has the advantage of compact structure,small volume, light weight,convenient move, suit for mountain and plain areas.
★ Adopting large drive pipe,double guide rod, increase the steady
Diesel engine or Electrical motor.



The maintenance of water well drilling rig needs to be carried out regularly



I. maintenance of filter element:

The filter element plays the role of filtering impurities in the oil or gas circuit, preventing them from invading the system and causing faults; Various filter elements should be replaced regularly according to the requirements of (operation and maintenance manual); When replacing the filter element, check whether there is metal attached to the old filter element. If there are metal particles, timely diagnose and take improvement measures; Use the pure filter element that meets the requirements of the machine.

II. Lubricating grease Management:

The use of lubricating oil (grease) can reduce the wear of the moving surface and prevent noise. When the grease is stored, it shall not be mixed with dust, sand, water and other impurities; Lithium grease G2-L1 is recommended, which has good anti-wear performance and is suitable for heavy load conditions; When filling, try to squeeze out all the old oil and wipe it clean to prevent sand adhesion

III. fuel management:

Choose different brands of diesel oil according to different ambient temperatures; Diesel oil cannot be mixed with impurities, ash and water, otherwise the fuel pump will wear out prematurely; The high content of paraffin and sulfur in inferior fuel will damage the engine; After daily operation, the fuel tank should be filled with fuel to prevent water droplets on the inner wall of the tank; Open the drain valve at the bottom of the fuel tank to drain water before daily operation.



Red GK200  Engineering Drilling Rig , High Speed Portable Core Drilling Machine 0Red GK200  Engineering Drilling Rig , High Speed Portable Core Drilling Machine 1Red GK200  Engineering Drilling Rig , High Speed Portable Core Drilling Machine 2Red GK200  Engineering Drilling Rig , High Speed Portable Core Drilling Machine 3Red GK200  Engineering Drilling Rig , High Speed Portable Core Drilling Machine 4
