| Type: | Geological Drilling Rig Machine | Dimension(L*W*H): E: | 1433*697*1273mm |
|---|---|---|---|
| Maximum Opening Diameter: On(L*W*H): | 300mm | Voltage: | 380V |
| Usage:: | Core Drill | Maximum Weight:: | 17KN |
| Max Output Torque:: | 1500N. M | Power Type: | Diesel |
| High Light: | dth drilling machine,water borehole drilling machine |
||

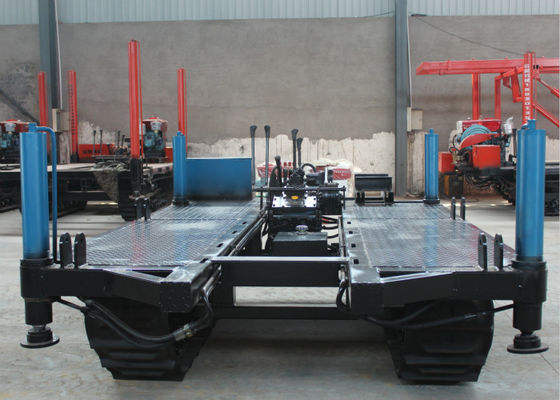

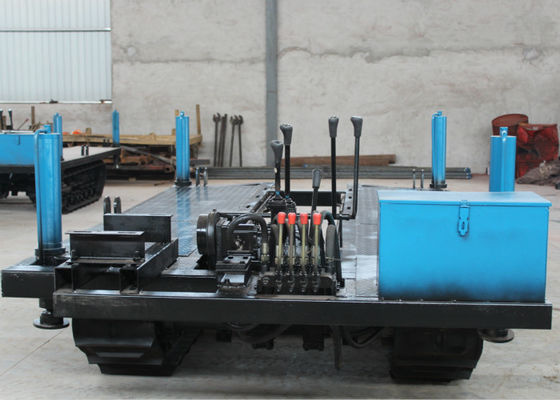

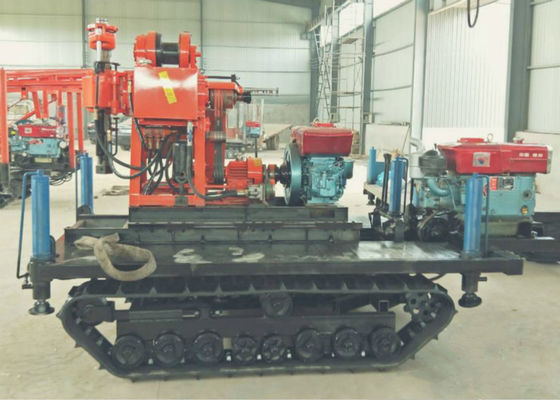

Crawler Mounted Geological Drilling Rig Machine Diesel Power Type For Stone Borehole
XY-200 drilling rig is mainly a collection of functions and features of the popular market XY-1, XY-1B, XY-1A other small rigs.It is a light larger torque rotary rigs which uses XY-1 hydraulic automatic infeed, a wide range of large modulus gear transmission of XY-1B's, XY-1A Wide range speed. Suitable for geological survey and prospecting, exploration roads and building exploration , high-speed grouting detection hole, blast hole, small wells, small pile hole drilling, etc. Divided into three types of XY-200, XY-200 (YJ) (with the shift function) and XY-200 (YJ) with pump.
(1) Rated drilling depth:200m,The deepest shall not exceed 220m.
Rated opening diameter:200mm.
Maximum opening diameter : 300mm.
Drilling depth and drilling diameter shall be determined according to the formation conditions.
(2) The vertical speed (four steps):118,236,505,1010.r/rain
(3) Max output torque:1500N. m
(4) Maximum weight (a speed of single rope):17KN
(5) drill pipe diameter:42mm
(6) Borehole inclination:90~75°
(7) Rig overall dimensions·(L×B×H)1433×697×1273mm
(8) Rig weight:500kg(Transfer machines 620kg, transfer machine with pump 720kg)
(9) Engine model:S1115
