Heavy Loading Capacity Crawler Dump Truck / Carrier Customized Design

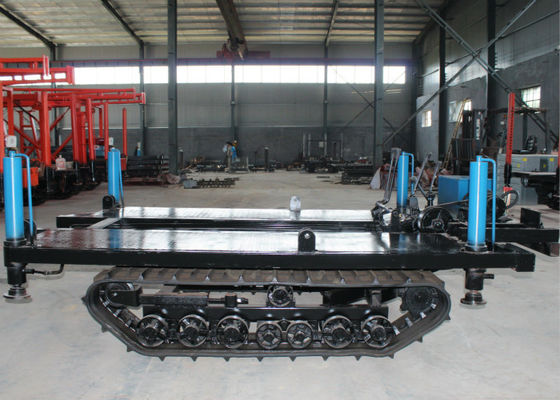

Large Image : Heavy Loading Capacity Crawler Dump Truck / Carrier Customized Design

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	Carrier 1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Delivery Time:	Within 7-12 days
Payment Terms:	T/T,Western Union

Contact Now

Detailed Product Description

Highlight:

water borehole drilling machine

down the hole drill rig

Heavy Loading Capacity Crawler Dump Truck / Carrier Customized Design

Key Specifications

Attribute	Value
Name	crawler carrier
Type	track dump carrier
Model of Rubber Track	4009054
Mini Crawler Dump Truck Wheel Base	1932mm
Ground Clearance	280mm
Track Dump Carrier Capacity	1m³
Dumping Height	570mm
System Pressure	16mpa

Detailed Product Features

Body weight: 1.4 tons
Weight: 2 tons
Lorry-mounted crane hoisting capacity: 1 ton
Boom lifting height: 3 m
Gear and speed: 3 forward speeds + 1 reverse (8 km/h fastest, 0.6 km/h slowest)
Standard car size: 1.6 m * 2.0 m (customizable)
Climbing ability: 28 degrees
Engine power: 28 horsepower
Obstacle clearance: 30 cm
Vehicle dimensions (L*W*H): 340 cm * 160 cm * 120 cm
Chassis dimensions (L*W*H): 195 cm * 160 cm * 45 cm
Diesel engine model: WL-28
Diesel power: 20.24 kw / 2200 r/min
Ground clearance: 25 cm
Packing case dimensions (L*W*H): 180 cm * 160 cm * 40 cm (customizable)
Road load capacity: 2000 kg
Maximum gradient load: 1200 kg
Speed range: 1.2 km/h (slowest) to 6 km/h (fastest)
Wading depth: 40 cm
Mud wading depth: 20 cm
grounding length: 130 cm
Crawler type: 400 mm

Professional crawler dump truck/carrier

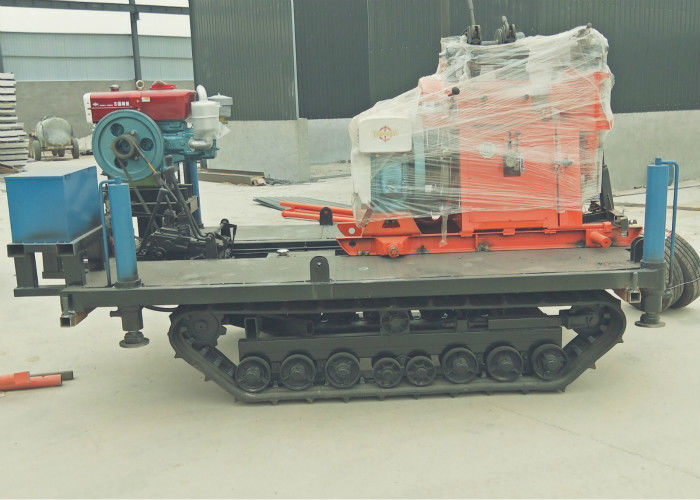

Additional product view
