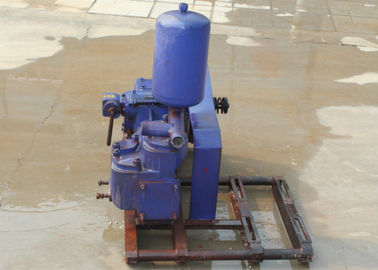

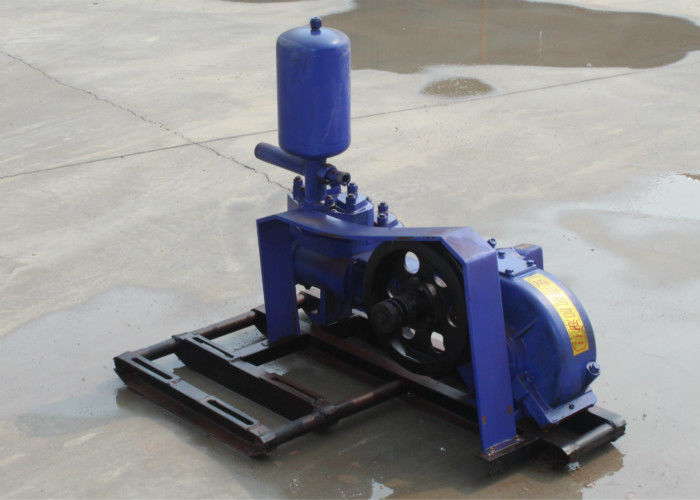

Single Acting Triplex Mud Pump for Geological Survey / Agricultural Irrigation

Single Acting Triplex Mud Pump for Geological Survey / Agricultural Irrigation
Single Acting Triplex Mud Pump for Geological Survey / Agricultural Irrigation Single Acting Triplex Mud Pump for Geological Survey / Agricultural Irrigation

Large Image :  Single Acting Triplex Mud Pump for Geological Survey / Agricultural Irrigation

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: BW320
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard export transportation package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 20000Set/Year
Detailed Product Description
Name: Single Acting Triplex Mud Pump Type: Gear Pump
Application: Hole Drilling Power Type: Diesel/Hydraulic/Electric
Material: Metal / Coil Flow: 320L/min
Pressure: 4-10Mpa Dimension: 1000*995*650mm
Liner Diameter: 85mm 65mm Weight: 760kgs
Highlight:

portable mud pump

,

reciprocating mud pump

Single Acting Triplex Mud Pump for Geological Survey / Agricultural Irrigation





 Introduction to mud pump



BW-320 MUD PUMP is single-acting triplex-plunger pump suitable for core drilling within 2000 meters and hydraulic percussive drilling within 1000 meters. It can fit for 80mm cylinder and 60mm cylinder according to clients' demands. It has reliable structure,long life,convenient and low maintenance.



Mud pump parameters



BW-320 MUD PUMP
Type Single-acting triplex plunger
Stroke 110mm
Bore 80mm 60mm
Pump speed (s.p.m) 214, 153, 109, 78 214, 153, 109, 78
Output volume (l.p.m) 320, 230, 165, 118 180, 130, 92, 66
Discharge pressure (Mpa) 4.0, 5.0, 6.0, 8.0 6.0, 8.0, 9.0, 10.0
Input power (Kw) 30
Suction pipe dia (mm) 75
Discharge pip dia (mm) 50
Drilling hole depth (m) Diamond core drilling < 3000
Conventroxal core drilling < 2000
Weight (Kg) 650 (without power)
1000 (with motor)
Overall dimensions (mm)

1280*855*750





BW320 mud pump Application



1.BW320 mud pump are mainly used for irrigation agricultural machinery.the main characteristic is the high pressure,lift much,less engergy consumption,easy operation,high quality and duarable,easy to move,especially for mountain terraces of irrigation.

2.BW320 type mud pump is a horizontal triplex single acting reciprocating piston pump, which has two bore and fourth gear speed. Displacement and hole depth can be adjusted according to the application, the deepest can be adjusted to the application,the deepest can be used with 1800meters driling rig,it also can be used cement perfusion.
3.They are also the main equipment of the geological survey,the main role in the process of core drilling boreholes is to supply fluid(mud or water),making it circulate during drilling and carry rock waste back to the ground,in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.
4.BW320 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 1500 meter.



Applicable scope of BW320 mud pump


BW320 mud pump is widely used in mines, geological drilling, railways, highways, water conservancy and hydropower, bridges, high-rise buildings, foundation reinforcement and other projects. Specially designed for mining, it is both durable and reasonable in structure. It has the characteristics of high pressure, large flow, multiple variable, low consumption, light volume, high efficiency, long life, safe operation, convenient maintenance, etc.



Single Acting Triplex Mud Pump for Geological Survey / Agricultural Irrigation 0Single Acting Triplex Mud Pump for Geological Survey / Agricultural Irrigation 1Single Acting Triplex Mud Pump for Geological Survey / Agricultural Irrigation 2Single Acting Triplex Mud Pump for Geological Survey / Agricultural Irrigation 3
