Jinzhou City Shitan Machinery Equipment CO. LTD.
Home ProductsDrilling Mud Pump

Single Acting Drilling Mud Pump BW750 1500 * 890 * 1230mm Dimension For Hole Drilling

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

Single Acting Drilling Mud Pump BW750 1500 * 890 * 1230mm Dimension For Hole Drilling

Single Acting Drilling Mud Pump BW750 1500 * 890 * 1230mm Dimension For Hole Drilling
Single Acting Drilling Mud Pump BW750 1500 * 890 * 1230mm Dimension For Hole Drilling Single Acting Drilling Mud Pump BW750 1500 * 890 * 1230mm Dimension For Hole Drilling

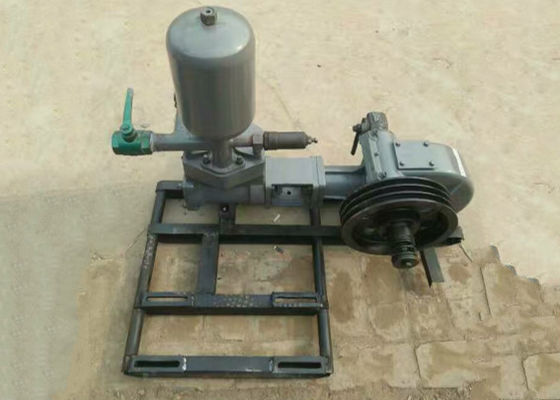

Large Image :  Single Acting Drilling Mud Pump BW750 1500 * 890 * 1230mm Dimension For Hole Drilling

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: BW750
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard export transportation package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 20000Set/Year
Detailed Product Description
Model Number: BW750 Type: Triplex Reciprocating Pump
Application: Hole Drilling Power Type: Diesel/Hydraulic/Electric
Material: Metal / Coil Flow: 750L/min
Pressure: 3-6Mpa Dimension: 1500*890*1230mm
Liner Diameter: 85mm 65mm Weight: 1400kgs
High Light:

portable mud pump

,

water well mud pump

Single Acting Drilling Mud Pump BW750 1500 * 890 * 1230mm Dimension For Hole Drilling





Characteristics



BW750 mud water pump is designed with multiple shifts for flexible speed and displacement adjustment. With compact structure and light weight, this reciprocating piston pump is also energy-saving, highly-effective and durable in use. In addition, it is easy to operate and convenient to maintain, keeping the maintenance cost low. This mud pump is primarily used as low and medium grouting pump in geological drilling, geological engineering construction and foundation treatment.



BW750 mud pump is a horizontal three cylinder reciprocating single acting piston pump. Advanced product design, reasonable structure, high pressure, flow, multi-file variable, energy saving, light volume, efficiency, plant life, safe operation, easy maintenance.



BW750 mud water pump is extensively utilized in industries including geology, coal, building, metallurgy, chemicals, railway, water conservancy, oil and other fields.

Tag: drilling mud pump, mud pumps for drilling rigs

Specification


Horizontal ,three-cylinder single-acting ,reciprocal piston pump, used to supply flushing fluid to the drilling well in enginee



Model BW750 mud pump
Type Horizontal three cylinder reciprocating single acting piston pump
Cylinder diameter (mm) 110
Stroke (mm) 110
Pump speed (times/min) 240 166 112 78
Flow (l/min) 750 505 345 235
Pressure (Mpa) 3 4 5 6
Power (Kw) 55
Shape size (mm) 1500*890*1230
Weight (kg) 1400



Single Acting Drilling Mud Pump BW750 1500 * 890 * 1230mm Dimension For Hole Drilling 0
