BW 250 Horizontal Drilling Triplex Mud Pump For Micro Piling Machine

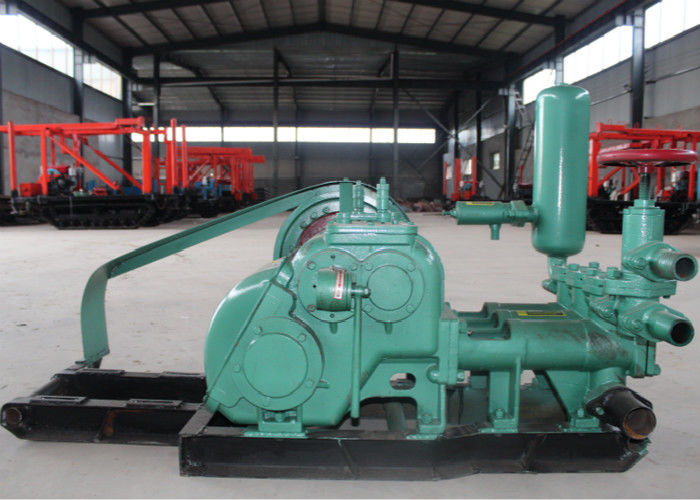

Large Image : BW 250 Horizontal Drilling Triplex Mud Pump For Micro Piling Machine

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	BW 250

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard export transportation package
Delivery Time:	Within 7-12 days
Payment Terms:	L/C,D/A,T/T,Western Union
Supply Ability:	20000Set/Year

Contact Now

Detailed Product Description

Name:	BW 250 Mud Pump	Type:	Triplex Mud Pump
Theory:	Centrifugal Pump	Structure:	Single Stage Pump
Power:	Electric	Application:	Submersible
Usage:	Water
Highlight:	portable mud pump , reciprocating mud pump

BW 250 Horizontal Drilling Triplex Mud Pump For Micro Piling Machine

Product Specifications

Attribute	Value
Name	BW 250 mud pump
Type	Triplex mud pump
Theory	Centrifugal Pump
Structure	Single stage Pump
Power	Electric
Application	Submersible
Usage	Water

Product Overview

The BW-250 mud pump is a horizontal three-cylinder reciprocating single-acting piston pump with two cylinder and four file variable configurations. The large cylinder supports 1000 meters of large diameter drilling, while the small cylinder supports 1500 meters of small diameter drilling. Primarily used for core drilling operations, it also serves mine grouting, drainage, and long-distance water supply applications.

Key advantages include low energy consumption, flexible operation, durable construction, easy disassembly, and portability.

Technical Parameters

Technical Parameter	BW150 Mud Pump	BW-250 Mud Pump	BW320-Z Mud Pump
Max Flow Rate	150L/min	150L/min	320L/min
Maximum Pressure	70kg/cm²	80kg/cm²	100kg/cm²
Driving Power	7.5kw	15kw	30kw
Inlet Pipe Diameter	50mm	75mm	75mm
Outlet Pipe Diameter	32mm	50mm	50mm
Drilling Depth (Diamond)	<1500m	<1800m
Drilling Depth (Hard Alloy)	<1000m	<1500m
Dimensions (L×W×H)	1100×995×650mm	1280×855×750mm
Weight	560kg	760kg	1000kg

Key Features

Four adjustable flow levels accommodate various drilling rig sizes with wide parameter selection
Bowl-shaped, self-sealing S-type polyurethane rubber piston with nylon backrest for extended service life
Five dust sealing rings on pull rod prevent mud contamination of power end components
Steel ball inlet/outlet valves with sound-absorbing rubber pads reduce operational noise
BY-1 seismic resistant pressure gauge for reliable measurement
Compact, modular design for easy maintenance and transportation

Performance Advantages

Stable liquid flow without pulsation, agitation, or slurry shearing
Directly proportional flow-to-speed ratio with adjustable speed control
Strong self-priming capability eliminates need for bottom valves
Smooth operation with minimal vibration and noise
Simple mechanical structure for easy maintenance

Applications

Ideal for dam foundation curtain grouting, consolidation grouting, anchoring grouting, and long-distance slurry transport. The BW-250 excels in high-concentration, high-pressure (8 Mpa) curtain grouting and mortar handling (particles <2mm), making it versatile for various foundation treatment projects.
