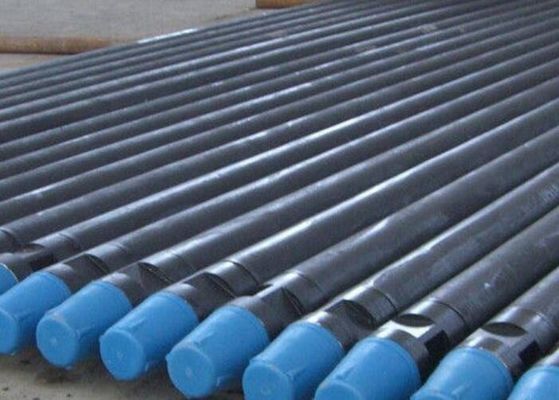

Quarry Rock Drill Rods / Tapered Drill Rod H22x108mm Shank For Small Hole Drilling

Quarry Rock Drill Rods / Tapered Drill Rod H22x108mm Shank For Small Hole Drilling
Quarry Rock Drill Rods / Tapered Drill Rod H22x108mm Shank For Small Hole Drilling
video play

Large Image :  Quarry Rock Drill Rods / Tapered Drill Rod H22x108mm Shank For Small Hole Drilling

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: 11°
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard export package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Contact Now
Detailed Product Description
Parts Name: Tapered Steel Rod Processing Type: Casting
Machine Type: Drilling Tool Thread Protector: Plastic, Metal, Rubber
Shank: H22x108mm Shank2: H19x108mm
Diameter: 20-42mm
Highlight:

mining drill rods

,

tapered drill rod

Quarry Rock Drill Rods / Tapered Drill Rod H22x108mm Shank For Small Hole Drilling
Product Specifications
Parts Name
tapered steel rod
Processing Type
Casting
Machine Type
Drilling Tool
Thread Protector
Plastic, Metal, Rubber
Shank
H22x108mm
Shank2
H19x108mm
Diameter
20-42mm
Key Features
  • Available in shank sizes: H22x108mm and H19x108mm with standard hex configuration
  • Bit diameters range from 20-42mm with lengths from 400mm to 6000mm
  • Reduces impact energy expense while improving drilling speed and efficiency
  • Constructed from premium alloy steel and high-quality tungsten carbide for superior performance
  • Suitable for drilling bore holes from 19mm to 41mm diameter
Technical Specifications
Shank Style Length (Mm) Length (foot/inch) Head Diameter (Mm) Head Diameter (Inch)
Hex19 × 108mm 400 ~ 4,000 1' 4" ~ 13' 1" 23 ~ 35 27/32 ~ 1 3/8
Hex22 × 108mm 400 ~ 9,600 1' 4" ~ 31' 6" 26 ~ 41 1 1/32 ~ 1 39/64
Hex25 × 108mm 600 ~ 6,400 1' 11 5/8" ~ 21' 33 ~ 45 1 19/64 ~ 1 25/32
Hex25 ×159mm 800 ~ 6,400 2' 7" ~ 21' 35 ~ 42 1 3/8 ~ 1 21/32
Applications

These integral drill rods are designed for small hole drilling applications when used with small power rock drills such as air leg rock drills and handheld rock drills. They are ideal for drilling bore holes typically ranging from 29mm to 41mm in diameter.

Available in various lengths from 600mm to 9600mm, these hexagonal rods feature integrated cemented carbide chisel-shaped bit heads. Manufactured with high-grade alloy steels and premium Chinese tungsten carbides, they deliver exceptional drilling performance.

Performance Benefits
  • Optimizes impact energy transfer for improved drilling efficiency
  • Enhances drilling speed while reducing operational costs
  • Premium alloy steel construction ensures durability
  • High-quality tungsten carbide tips provide superior cutting performance
  • Versatile sizing options accommodate various drilling requirements

Tag:

tapered drill rod,

integral drill rods,

mining drill rods
