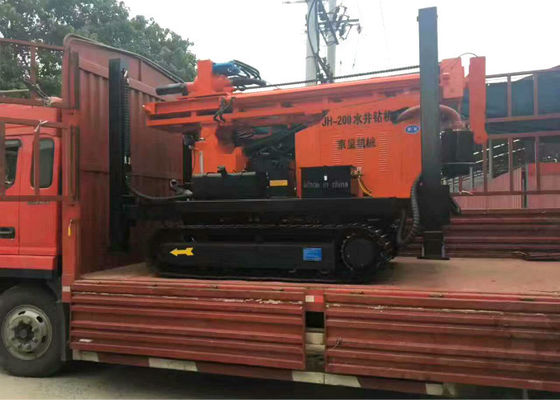

Full Hydraulic Horizontal Directional Drilling Rig For 300m Drilling Depth
Product Advantages
1. 300m well drilling rig uses full hydraulic control, and it has the top
drive to drive the rotation of drilling tools with very high drilling efficiency.
2. With fast construction speed, it can save your precious time and finish the
engineering.
3. Each drill hoist arm is installed limiter to protect the cylinder safety, and then
to ensure the safety of the work.
4. The equipment is an patented product with unique design and simple
drilling structure.
2. Characteristics
(1)light weight, easy portable, suitable for different working environment, like plain or valley places.
(2)Handle rack, easy operation, safe for body.
(3)Hydraulic power drilling device, high effiency.
(4)Fast Drilling speed; horizontal and vertica direction drill.
Product Details
| UNITS |
PARAMETERS |
|
| Weight |
T |
7 |
| Dimensions(L*W*H) |
mm |
4100*1950*2600 |
| Borehole Diameter |
mm |
140-325 |
| Drilling Depth |
m |
300 |
| Advanced Length Once a Time |
mm |
3400 |
| Walking Speed |
KM/h |
2.5 |
| Max. Climbing Angles |
º |
30 |
| Power |
KW |
75.8 |
| Distance off Ground |
mm |
250 |
| Working Pressure |
Mpa |
1.7-3.0 |
| Air Consumption |
m³/min |
17-35 |
| Drill Pipe Diameter |
mm |
Ø76/ø89/ø102 |
| Drill Pipe Length |
m |
1.5/2.0/3.0 |
| Rig Lifting Force |
T |
16 |
| Swing Speed |
rpm |
40-70 |
| Swing Torque |
N.m |
5700-7500 |
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
