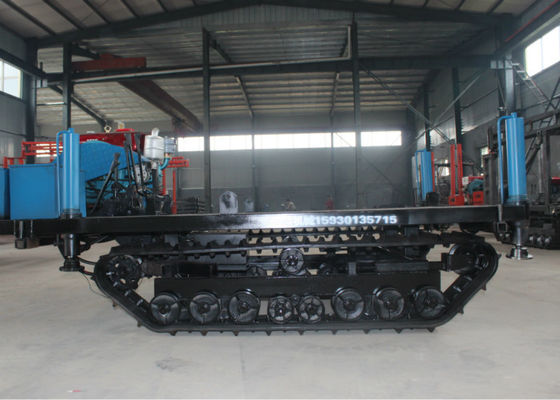

200 Meter Depth Geological Drilling Rig For Physics Exploration

200 Meter Depth Geological Drilling Rig  For Physics Exploration

Large Image :  200 Meter Depth Geological Drilling Rig For Physics Exploration

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: TSH-200
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Detailed Product Description
Type: Geological Drilling Rig Voltage: 380V
Dimension(L*W*H): 3850*1500*2250MM Usage: Water Well
Application: Water Well Drilling / Core Drilling Power Type: Diesel 58-65KW
Weight: 5500KG Certification: ISO9001
Highlight:

water borehole drilling machine

,

down the hole drill rig

200 Meter Depth Geological Drilling Rig For Physics Exploration



Application



Geology general check exploration, Earth physics exploration, Road and high layer building ground survey, Well, Blast opening et cetera drilling engineering, civil wells and earth central air conditioner ,etc..



Product Description:



Drill rig specification
Drilling depth 180m-200m
Drilling Diameter 140-325mm
Drilling rod diameter 76mm ; 89mm
Drilling rod length 1.5m; 2.0m; 3.0m
One-time propulsion length 3300mm
Dimensions(L×W×H) 3850*1500*2250 (mm)
Weight 5500kg/set
Walking speed 0-2.5 km/h
Climbing angles 30Max.
Minimum distance between ground 250mm
Using air Pressure 1.7-3.5Mpa
Host Power 58-65KW
Air consumption 17-35cbm/min
Swing torque 8500-10000 N.M
Rig lifting force 24T
Swing speed 45-115rpm
Air Compressor Flow

29cbm;23kg





Our Services:



1. Drill pipe strictly according to ISO9001 standard

2. If you found to quality problems within one month of the package returned.

3. All strictly according to the contract and fulfill the obligations and responsibilities

4. 24 hours online customer service,feel free contact us



Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products:

Pneumatic Drilling Rig / Air Drilling Rig(ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.), Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig(ST-30,ST-50,XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines)Crawler Track Undercarriage, Drilling Mud Pump(BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps), Drilling Air Compressor, Water Well Drill Bits(PDC Drill Bit, Tricone Bit, DTH Button Bit), Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
