XY-1 Portable Diesel Engine High Efficiency Geological Drilling Rig Machine

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

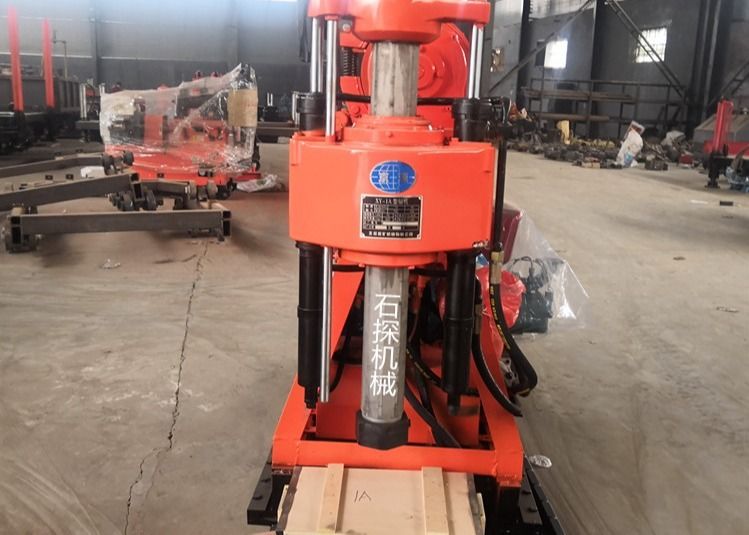

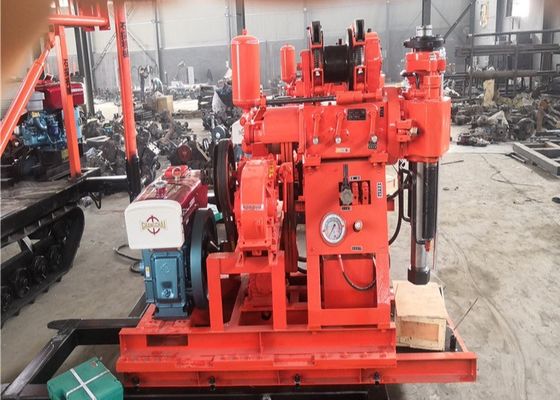

XY-1 Portable Diesel Engine High Efficiency Geological Drilling Rig Machine

XY-1 Portable Diesel Engine High Efficiency Geological Drilling Rig Machine
XY-1 Portable Diesel Engine High Efficiency Geological Drilling Rig Machine
video play

Large Image :  XY-1 Portable Diesel Engine High Efficiency Geological Drilling Rig Machine

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: XY-1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: exported packing
Delivery Time: Within 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 sets/year
Detailed Product Description
Type: XY-1 Geological Drilling Rig Machine Model: XY-1
Drilling Depth: 100 Meters Drilling Hole Diameter: 46-130mm
Voltage: 380V Usage: Exploration Sample Coring
Power: Diesel 12.1KW Dimension(L*W*H): 1800*835*1150mm
High Light:

dth drilling machine

,

water borehole drilling machine

High Speed Drilling Rigs XY -1 100 Meters Customized Geological Drilling Rig Machine



XY-1 Geological Drilling Rig Machine Information



XY-1 is a portable and multi-purpose drilling rig for engineering investigationIt is mainly used for the general survey and engineering geological investigation of solid deposits, and various inspection holes of concrete structures.

With a drilling hole diameter of 100 mm, it is capable of drilling deep into the ground to collect soil samples for testing and analysis.

For engineering and construction companies, this drilling rig is an essential piece of equipment for soil testing before starting any construction project. It ensures that the soil is suitable for the planned structure and helps engineers make informed decisions about the foundation and structure design.



XY-1 Geological Drilling Rig Machine Technical Parameters:



Basics Drill depth (m) 100
Drill hole(mm) 75-100
Final hole (mm) 75
Rod diameter (mm) 42/50
Drill angle (Degree) 75-90
Size(LxWxH)mm 1710x8500x1340
Weight (kg) 500
Spindle Spindle speed (r/min) 1010/790/470/295/140
Travel (mm) 450
Max. Pressure (kN) 15
Lifting force (kN) 25
Hoist Maxing lifting force (kN) 15
Drum speed (r/min) 121/76/36
Drum diameter (mm) 140
Steel rope diameter (mm) 9.1-12
Steel rope capacity 35
Brake diameter (mm) 252
Brake band width (mm) 50
Oil Pump Model YB-20/125
Rated pressure (Mpa) 12.5
Flow rate (ml/r) 20
Rated speed (r/min) 1500
Diesel engine Model ZS1105(18HP)
Nominal speed (r/min) 2200
Power(Kw) 13.3



XY-1 Geological Drilling Rig Machine Applications



1. With a hydraulic feed mechanism, improve drilling efficiency and reduce the labor intensity of workers.
2. The drilling rig is equipped with an upper ball clamping mechanism and a hexagonal active drill rod, which can be used to
reverse the rod without stopping the machine.
3. Equipped with a pressure gauge at the bottom of the hole, indicating the pressure to facilitate the grasp of the situation in the hole.
4. The handle is convenient for centralized operation.
5. The drilling rig has a compact structure, small size, lightweight, strong decomposability, easy to move, suitable for working in plains or mountainous areas.



XY-1 Geological Drilling Rig Machine FAQ



Q1.How to choose a drilling rig?

Ans.: It has different models used for all kinds of hole diameter and depth, it is the best choice for drilling works.
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
Q4.What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for a new one.

And we provide videos for machine install and operation.



  • Q: What is the brand name of this product?
    A: The brand name of this product is Shitan.
  • Q: What is the model number of this product?
    A: The model number of this product is XY-1.
  • Q: Where is this product manufactured?
    A: This product is manufactured in Jinzhou, Hebei, China.
  • Q: What is the purpose of this product?
    A: The purpose of this product is to perform soil testing and drilling.
  • Q: What type of soil is this product suitable for?
    A: This product is suitable for various types of soil, including clay, sand,
