Powerful Drilling Mud Pump Horizontal Type BW Grouting Pump For Engineering Exploration

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

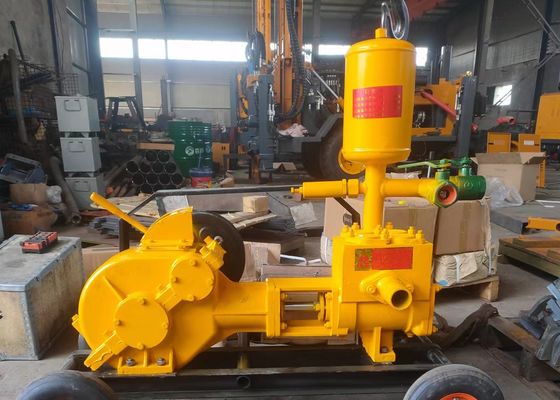

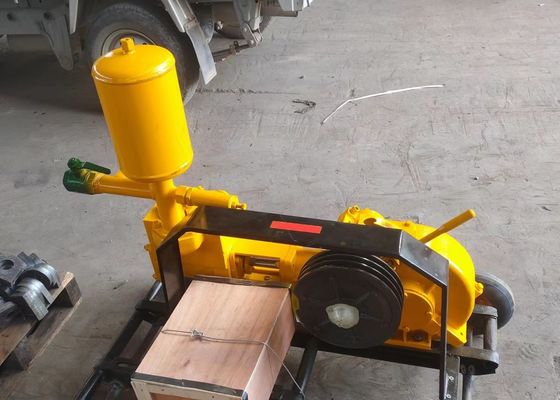

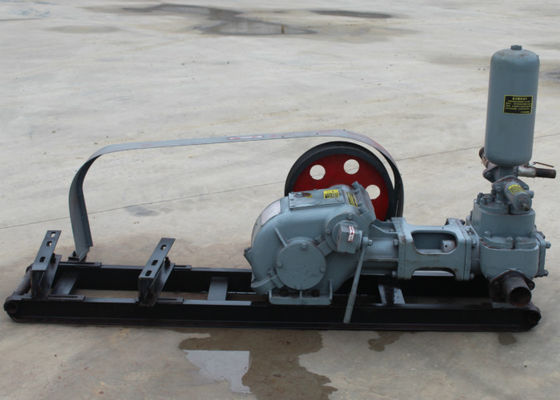

Powerful Drilling Mud Pump Horizontal Type BW Grouting Pump For Engineering Exploration

Powerful Drilling Mud Pump Horizontal Type BW Grouting Pump For Engineering Exploration
Powerful Drilling Mud Pump Horizontal Type BW Grouting Pump For Engineering Exploration
video play

Large Image :  Powerful Drilling Mud Pump Horizontal Type BW Grouting Pump For Engineering Exploration

Product Details:
Place of Origin: China
Brand Name: ShiTan
Certification: ISO9001
Model Number: BW-160
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard export transportation package
Delivery Time: Within 7-12 days
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 20000Set/Year
Detailed Product Description
Mud Pump Motor: Portable Mud Pump Well Drilling Usage: Water
Application: Submersible, Use Together With Drill Type: Horizontal
Structure: Piston Pump Power: Electric
High Light:

portable mud pump

,

water well mud pump

Powerful Drilling Mud Pump Horizontal Type BW Grouting Pump For Engineering Exploration





Types of mud pump accessories


 cylinder liner, cylinder head sleeve, cylinder head, rod, piston, piston pressure plate, piston seat, piston rod, plunger rod, inlet and outlet valve, valve seat, crosshead, crosshead sliding sleeve, crosshead pin shaft, crankshaft, connecting rod, connecting rod upper and lower bearing, connecting rod copper sleeve, connecting rod screw and nut, crown nut, skeleton oil seal, O-ring seal, bearing and matching gears, shaft, etc. are prone to quality problems, and should be noted during purchase and use.



Technical Parameters for BW-160 mud pump



Type Horizontal type single-cylinder Double-action pump
Cylinder Diameter 95 mm
Stroke 85 mm
Reciprocate Times 165 times/ minute
Displacement 160 L/min
Pressure 1.3 MPa
Volume Effiency 80%
Input Speed 951 rotations/min
Transmisiion shaft speed 5.5KW
Input pipe diameter 50mm
Output pipe diameter 40mm
Mass (including the engine) 200 kg
Dimensions 1110*725*965 mm



Characteristics of mud pump:



1. Can transport high concentration, high viscosity<10000PaS, and suspended slurries containing particles.

2. The conveying liquid flow is stable, without overflow, pulsation, stirring, and shearing of the slurry.

3. The discharge pressure is independent of the speed, and a low flow rate can maintain a high discharge pressure.

4. The flow rate is directly proportional to the speed, and flow regulation can be achieved through a variable speed mechanism or a speed regulating motor.

5. Strong self suction ability, can directly suck liquid without the need for a bottom valve.

6. The pump is reversible, and the direction of liquid flow is changed by the rotation direction of the pump, suitable for situations where pipelines require reverse flushing.

7. Smooth operation, low vibration and noise.

8. Simple structure, easy disassembly and maintenance.



The development of mud pumps:



So far, drilling with mud pumps has a history of over 100 years. The function of early mud pumps was to circulate mud, cool the bottom of the well, carry rock cuttings, and form mud cakes on the wellbore wall. In the late 1940s, jet drilling and later downhole power drilling were adopted, which used the erosion force of high-pressure mud to assist in breaking rocks and accelerating drilling speed. The power of mud was used to drive downhole turbine drilling tools to rotate drilling, thereby expanding the function and scope of use of mud pumps.



Powerful Drilling Mud Pump Horizontal Type BW Grouting Pump For Engineering Exploration 0Powerful Drilling Mud Pump Horizontal Type BW Grouting Pump For Engineering Exploration 1Powerful Drilling Mud Pump Horizontal Type BW Grouting Pump For Engineering Exploration 2Powerful Drilling Mud Pump Horizontal Type BW Grouting Pump For Engineering Exploration 3
