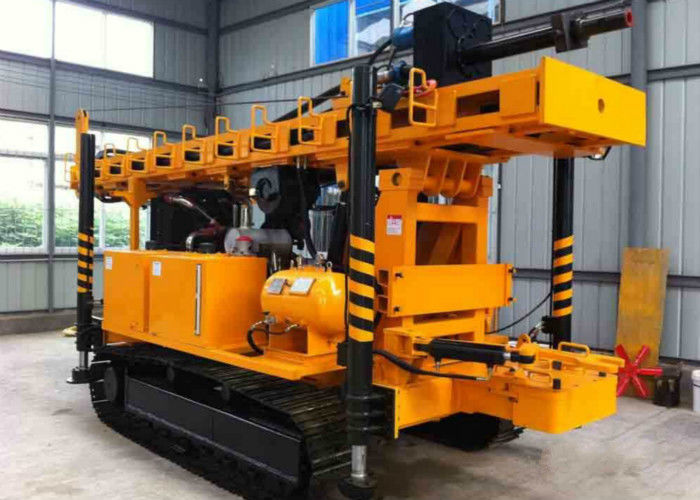

Professional Water Drill Truck 100m Depth For Mining Exploration
| Attribute |
Value |
| Type |
hydraulic crawler drilling machine |
| Max. Drilling depth |
100m |
| Dimension(L*W*H) |
1640*850*1340mm |
| Power Type |
42mm |
| Usage |
Water Well |
| Feature |
high drilling efficiency |
Main Features
- Hydraulic feeding device for high drilling efficiency
- Large rotary torque for increased hole diameter capacity
- Ball card clamping mechanism enables non-inverted pole operation
- Compact structure with small volume and light weight
- Strong decomposition capability for easy transportation
The XY-1 type drilling rig is a portable hydraulic drilling rig designed for professional applications.
Rig Specifications
Suitable for survey and prospecting, geophysical exploration, roads and buildings exploration, and blasthole drilling projects.
Can utilize various drill types (alloy, steel grit, steel shot) depending on geological conditions.
Capable of drilling through 2-9 grade sandy clay and bedrock formations.
Rated drilling depth: 100m (maximum 120m). Nominal hole diameter: 110mm (maximum 130mm, final hole diameter 75mm).
Rig Features
- Hydraulic automatic feed mechanism improves efficiency and reduces labor
- Ball chuck mechanism enables safe, non-stop lever operation
- Bottom hole pressure gauge for real-time monitoring
- Centralized handle controls for easy operation
- Lightweight design with strong decomposition for mobility in various terrains
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
