Reliable Engineering Drilling Rig Crawler Mounted Drill Rig Size Customized

Features



The new crawler chassis is designed to enhance the bearing capacity of gear, box body and shaft , which make the maximum power of the gearbox can output is nearly double the original product.
In the steering and braking structure, single axle steering brake replaces the original the double axle gear brake, which greatly reduces the attrition degree of wear parts.
Using wet friction brake is more reliable. The hydraulic transmission tower lifting device is safe and convenient to go up and down and easy to move the whole operation. Also it can be modified according to the customer's reasonable requirements.



Drilling rig parameters



Basic Data	Specs	Value						Gyrator	Specs	Value
	Hole Diameter (mm)	75	91	110	130	150	300		Rotation rate(r/min)	115 230 505 1010
	Drilling Depth (m)	200	150	100	70	50	30		Vertical axis stroke(mm)	450
	Drilling Rod Diameter(mm)	60 50 42							Unload Max upward movement speed (m/s)	0.05
	Drilling Angle	90°— 75°							downward movement speed(m/s)	0.067
	Weight(kg)	525							Vertical max feed force(KN)	15
	Overall Dimensions(mm)	1433*697*1273							Max lifting force of vertical (KN)	25
hoist	Lifting Force(kN)	15						Oil pump	Model	Gear Oil Pump
	Reel speed (second layer) m/s	0.166 0.331 0.733 1.465							Rated speed (r/min)	2000
									Rated pressure (MPa)	12.5
	Drum speed (r/min)	19 38 84 168							Displacement (L/r)	20
	Drum diameter (mm)	140						Power Machine	Model	Motor	Diesel Engine
	Wire diameter (mm)	9.3							Power(KW)	11	16.2
	Steel wire capacity (m)	35							Speed(r/min)	1460	2200





Advantages



1 The four feet are hydraulic support legs. Each one is controlled alone which make the platform is fixed on the ground smoothly.
2 The maximum load of the platform is 4500kg and can load XY-2 drilling rig furthest. The size of the platform is reasonable.
3 The chassis adopts rubber track, which has the advantages of lighter weight, lower life-cycle costs, and less vehicle running gear noise, less vehicle vibration, less fuel consumption. It does not hurt the pavement in the city roads.

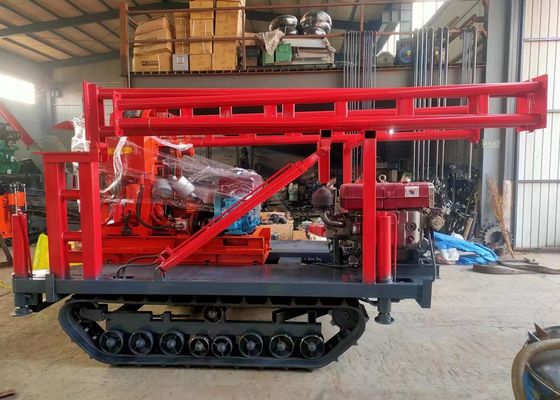

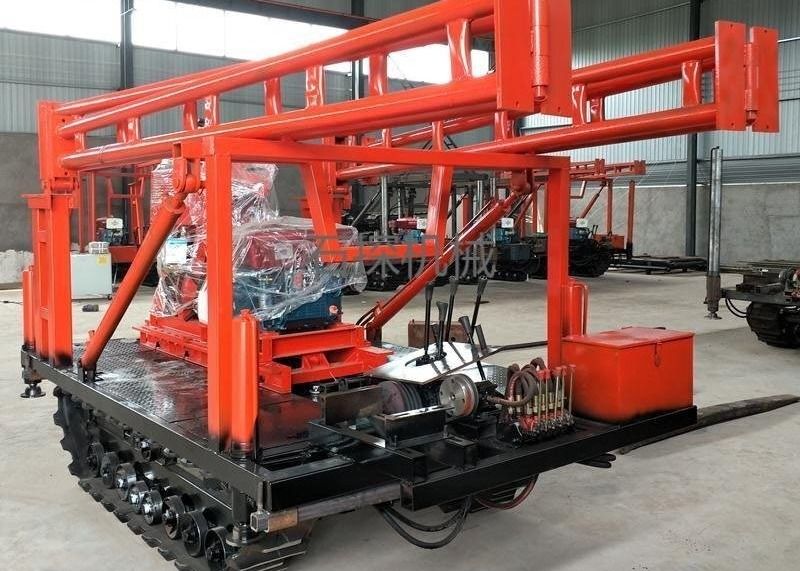

This price of crawler chassis includes hydraulic tower and diesel engine, but not the drilling rig. The drilling machine in the picture is only for the display effect.



The main purpose and characteristics



It is an efficient and versatile drilling equipment. It is mainly usd for drilling wells, agricultural irrigation wells, ground source heat pump wells and other wellbores. It is especially suitable for water intake projects in mountainous and rock formations.



​
