| Type: | Drill Gyrator Assembly | Model Number: | GK-180 / GK 200 / XY-1A / XY-1B |
|---|---|---|---|
| Application: | Geological Drilling Machine | Certification: | ISO9001 |
| Application: | Automobile | Color: | Customer Request |
| High Light: | drilling rig parts,drilling rig accessories |
||

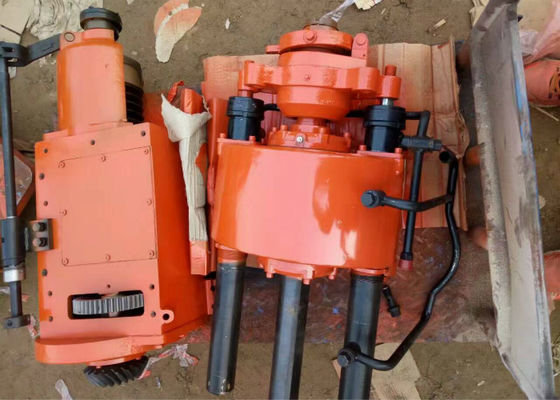

Durable Drill Gyrator Assembly Red Color For Water Well Drilling Rig ISO 9001 Approved
Structure: Most of the parts of the gyrator are installed in the vertical shaft box. The small bevel gear is mounted on the inner gear shaft through the spline. The ring seat has a ring-shaped "T" bolt and is combined with five "T" bolts. The sleeve is fixed, and the nut on the “T” bolt can be loosened to adjust the tilt angle of the gyrator to achieve angular drilling.
Drilling rig parameters
| GK-200 Type | |||
| Drill | Swivel Head | ||
|
Drilling depth
|
Max.200m |
Spindle speed
|
(4-speed) 115 230 505 1010r/m |
|
Hole diameter
|
Max.300mm | Spindle stroke | 450kmm |
| Drill rod diameter | 50mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump | ||
| Model | YBC-20/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.2Mpa |
| Flow speed | 20ml/r | ||
| Rated speed | 2000r/min | ||
| Hoist | Power(diesel) | ||
| Max. lifting capacity | 15KN | Model(diesel engine) | 1115 |
| Hoisting drum revolution | 20.39.85.170r/m | Rated power | 20KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 525KG | ||
| SIZE | 1433x697x1273mm | ||
Drilling rig accessories
The connection between the gyrator and the gearbox is to fix the turret seat on the gearbox body with 8 bolts. The large bevel gear is connected with the vertical bushing via a key, and the vertical bushing is connected with the vertical car through the hexagonal hole, thereby driving the vertical shaft to rotate the vertical shaft in the vertical shaft. The sleeve can be moved axially, and the movement is realized by pushing the piston rod and the beam into the upper chamber or the lower chamber of the cylinder.
The top shaft is terminated with a top sleeve, and the top sleeve is provided with six steel balls. When the anti-manipulation handle is pressed downward, the six steel balls are pushed toward the center of the vertical shaft through the inner jacket, and the semicircular communication groove of the drill pipe is embedded in the upper shaft. Inside, the drill pipe is clamped on the machine to realize the movement of the drill. When the handle is lifted up, the steel ball is disengaged from the drill pipe and can be inverted.
In order to display the scale of the vertical shaft stroke, a top sleeve with a hexagonal hole is arranged at the upper end of the vertical shaft, and the rotary motion can be transmitted to the drill pipe of the hexagonal machine.
How can we do a good job in the maintenance of well drilling rig?
Today, I'll talk about the five steps of well drilling rig
1. Pay attention to check whether the bolts and nuts of water and gas pipelines and various accessories of the drilling rig are firm at any time
2. . Always check the lubricating oil condition of the wind motor
3. . When the working face is immersed in water, a large-diameter drill head shall be used to insert the drill pipe when opening the hole, so that the drill pipe is 1-2 meters above the water surface to prevent mud and rock slag from falling into the hole
4. . The drilling rig is not allowed to reverse during drilling operation, so as to prevent the drill pipe from falling into the hole
5.. When the drilling rig stops working for a short time, a small amount of air pressure shall be given to prevent sediment from invading the interior of the percussion device of the drilling rig. If the drilling rig stops working for a long time, the percussion device shall be lifted 1-2m away from the hole bottom for fixation
