200m Depth Crawler Bore Pile Rig For Building Exploration

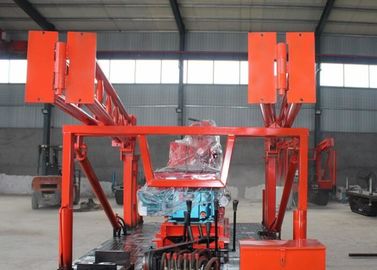

Large Image : 200m Depth Crawler Bore Pile Rig For Building Exploration

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	XY-200

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Delivery Time:	Within 7-12 days
Payment Terms:	L/C,D/A,T/T,Western Union

Contact Now

Detailed Product Description

Type:	Hydraulic Well Drilling Rig	Power Type:	Diesel
Dimension(LWH):	24009501400mm	Maximum Opening Diameter:	300mm
Usage:	Water Well	Application:	Core Sampling,Water Well,Bore We
Borehole Inclination:	90~75°
Highlight:	track mounted drilling machine , track mounted drill rig

200m Depth Crawler Bore Pile Rig For Building Exploration

Product Specifications

Type	hydraulic well drilling rig
Power Type	Diesel
Dimension (L×W×H)	2400×950×1400mm
Maximum opening diameter	300mm
Usage	Water Well
Application	Core Sampling, Water Well, Bore We
Borehole inclination	90~75°

Product Overview

The XY-200 drilling rig combines the best features of popular market models XY-1, XY-1B, and XY-1A. This light, high-torque rotary rig features XY-1 hydraulic automatic infeed, wide-range large modulus gear transmission, and variable speed control. Ideal for geological surveys, prospecting, building exploration, high-speed grouting detection holes, blast holes, small wells, and small pile hole drilling. Available in three configurations: XY-200, XY-200 (YJ) with shift function, and XY-200 (YJ) with pump.

Technical Parameters

Bore diameter	150, 76, 46mm
Bore depth	40, 160, 200m
Power head output rotation speed	Forward: 61~654 r/min (4 speed) Reverse: 45 r/min
Stroke	500mm
Max. pressure force	15KN
Max. lifting force	25KN
Drill rod clamping way	ball chuck
Drilling hole exposure way	power head hydraulic control backward
Hoist lifting force	15KN
Lifting speed	0.22, 0.95, 1.95, 5.3 m/sec
Diesel model and power	S1100M, 11KW
Electric motor model and power	Y160M-4, 11KW
Overall size	1800 × 1200 × 1500mm
Weight	650Kg

Key Features

Rated drilling depth: 200m (maximum 220m)
Rated opening diameter: 200mm (maximum 300mm)
Vertical speed (four steps): 118, 236, 505, 1010 r/min
Max output torque: 1500N.m
Maximum weight (single rope speed): 17KN
Drill pipe diameter: 42mm
Borehole inclination: 90~75°
Rig dimensions (L×B×H): 1433×697×1273mm
Weight: 500kg (620kg with transfer machine, 720kg with transfer machine and pump)

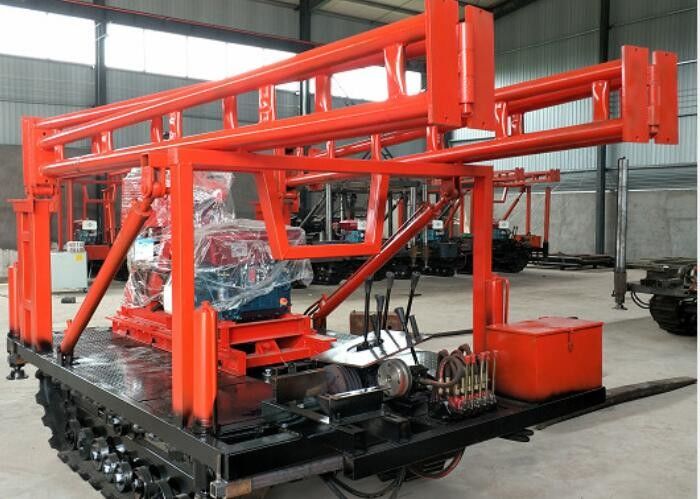

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
