New Stone Tan ST-150 Water Well And Core Borehole Drilling Rig
Description

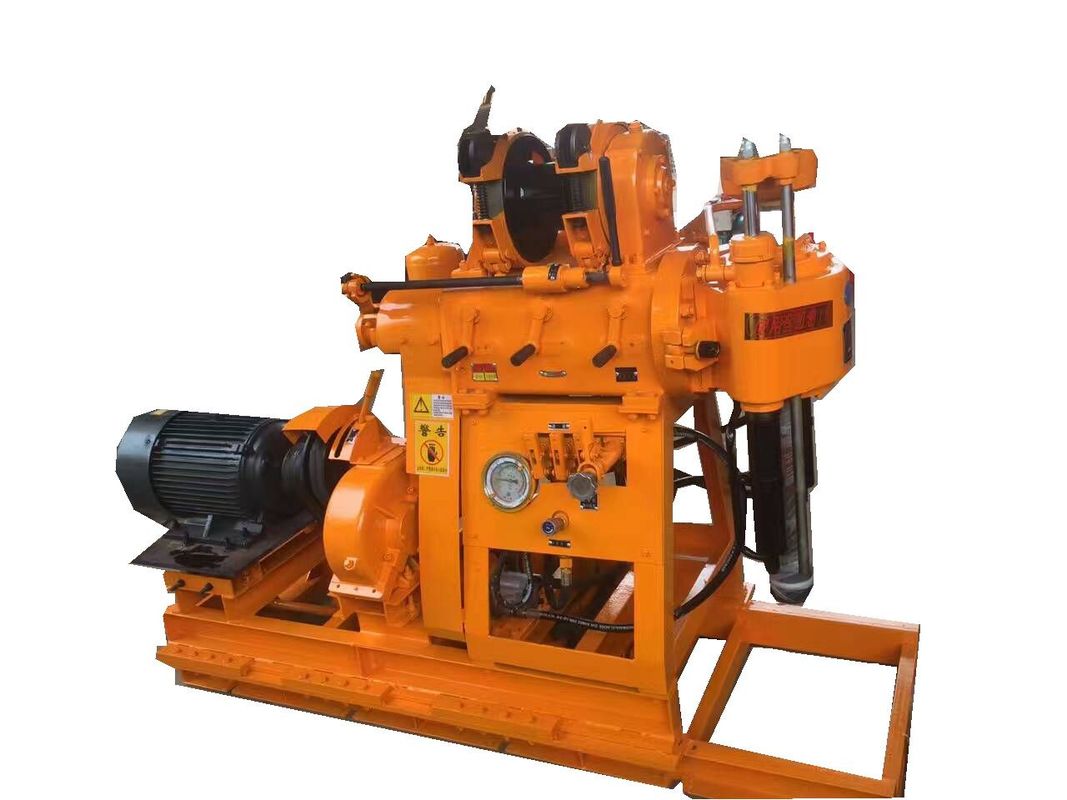

ST-150 Water Well And Core Borehole Drilling Rig is light shallow hole drill rig with hydraulic automatic feeding mechanism.It is mainly applied to the exploration, geophysical exploration, road and building exploration and small water well drilling, etc.
| ST-150 Water Well And Core Borehole Drilling Rig |
| Drilling diameter(mm) |
75,91,110,130,150 |
| Drilling depth (m) |
150,100,70,50,30 |
| Drill pipe diameter (mm) |
42,50 |
| Drilling angle(°) |
90~75 |
| Equipment size(L * B * H) |
1730 * 860 * 1360 (mm) |
| Rig weight (except engine) |
600 |
| Mobile device |
| Moving length |
350mm |
| Leave distance |
300mm |
| Gyrator |
| Spindle speed (four gear) (r/min) |
115,230,505,1010 |
| Spindle travel(mm) |
450 |
| Spindle no-load lifting maximum moving speed(m/s) |
0.05 |
| Spindle no load drop maximum movement speed(m/s) |
0.067 |
| Spindle maximum feed pressure(KN) |
15 |
| Spindle maximum lifting force(KN) |
25 |
| Spindle maximum output torque(KN• m) |
1.5 |
| Winch assembly |
| Winch maximum lifting force (single rope) |
20 |
| Reel speed (r/min) |
20,39,85,170 |
| Reel circumferential speed(m/s) |
0.172,0.345,0.738,1.476 |
| Reel diameter(mm) |
140 |
| Wire rope diameter(mm) |
9.3 |
| Wire rope density (m) |
40 |
| Brake diameter(mm) |
278 |
| Brake band width (mm) |
50 |
2. Definition and purpose
Definition: Core drilling rig is a type of core drilling equipment, mainly used to drive drilling tools to drill underground and obtain physical geological data. It is a mechanical equipment used in exploration or mineral resource development fields.
Purpose: Mainly used for the survey and exploration of metal and non-metal solid minerals, it can also be used for engineering geological exploration, hydrogeological investigation, oil and gas field survey and exploration, as well as water well drilling, etc.
3. Working principle
Power system: It generates power through diesel engines, AC or DC motors, etc., providing energy support for various systems of the drilling rig.
Transmission system: The power provided by the power system is transmitted and distributed to various work execution mechanisms of the drilling rig, such as rotation, lifting, and mud circulation, through mechanical transmission, hydraulic transmission, hydraulic transmission, and electric transmission.
Rotary system: composed of a turntable, power head, vertical shaft, water tap, active drill rod, etc., it drives the drill bit to rotate and break the formation rock.
Lifting system: lifting drilling tools during drilling operations, lifting casing during completion operations, and controlling drilling pressure during drilling operations.
Mud circulation system: including mud pump, mud surface manifold, mud pit, mud solid phase control device, and mud preparation device, etc., to maintain the circulation of drilling fluid, remove the rock debris generated by the fragmentation of the formation by the drill bit from the bottom of the well and carry it to the surface, while cooling and lubricating the drill bit and drilling tools.
