Shitan Shallow Machine Trailer Mounted Water Well Drilling Rig
Specifications
1. Mounted on a trailer.
2. XY-200 max. depth is 200m.
3. It can drill various soft and hard rock.
4. BV & SGS certificate.

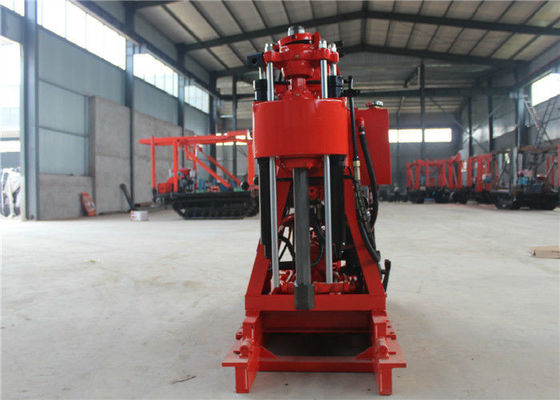

XY-200 200m Water Well Drilling Rig
Brief Introduce
XY-200 is widely used for Water well drilling, Geological Exploration and Prospecting, Geothermal wells, Blast-hole, Irrigation projects, etc.
Attracting features
1. Slide base: It is to make machine move when you need to adjust drilling position.
2. It has different types.
Four-wheel, two-wheel, crawler, according to your situation.
3. Different bits
Three-wing Bit, Alloy Bit, Diamond Bit. According to your Geological conditions, I can help you choose suitable bit.
4. Spare parts
We provide factory cost accessory all year round.
5. Power
Diesel engine or Electrical motor.
| Drilling Diameter(mm) |
90--- 140 |
| Drill depth(m) |
70 |
| Once promotion distance(m) |
1.5 |
| For rock |
F=0.5-0.7 |
| Wind pressure(MPa) |
0.7--1.4 |
| Air consumption(m3/min) |
7--15 |
| Host Power(kw) |
16.2 |
| Dimension (L * W * H)mm |
3200*1400*1500mm |
| Weight(kg) |
800 |
| DIMENSIONS |
1000*760*940mm
|
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
