Product Details:
|
| Packing: | As Required | Drill Hole Diameter: | 200mm |
|---|---|---|---|
| Drill Hole Depth: | 200m | Struter: | Sandy Rock |
| Color: | As Required | Mounted Type: | TRUCK OR TRAILER |
| High Light: | water borehole drilling equipment,hydraulic water well drilling machine |
||

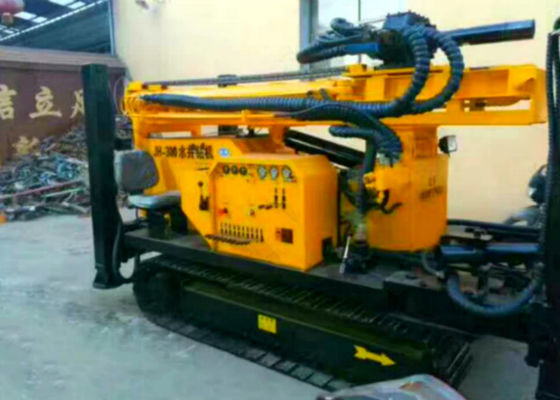

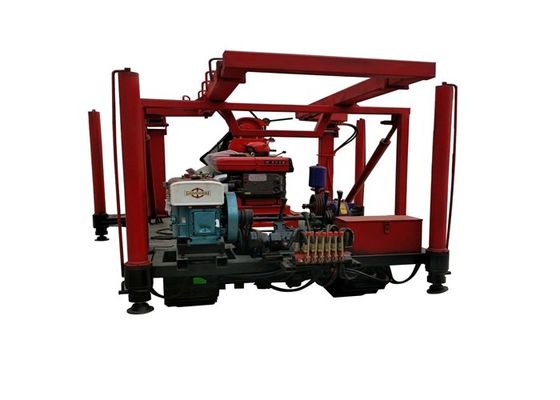

Rock Drill For Rock Stone Coal Mine Drilling 100-300m Depth
|
SPECIFICATION FOR
Rock Drill For Rock Stone Coal Mine Drilling 100-300m Depth |
|
|
Unity Machine Parameter
|
|
|
Drilling depth
|
30--200m
|
|
End hole caliber
|
500-75mm
|
|
Drill rod caliber
|
50mm
|
|
Drilling angle
|
90°~75°
|
|
Drill weight (No include power)
|
910kg
|
|
Unity machine dimensions
|
2.5×1×1.3 2.5×0.9×1.3m
|
|
Spindle
|
|
|
spindle speed
|
64,128,287,557r/min
|
|
Spindle stroke
|
450mm
|
|
Hoist
|
|
|
Max .single line hoisting capacity
|
2400kg
|
|
Single line lifting speed
|
17,35,75,151r/min
|
|
Tightrope caliber
|
12.5mm
|
|
Tightrope cubic measure
|
35m
|
|
Hug floodgate caliber
|
254mm
|
|
Hug floodgate belt width
|
70mm
|
|
Distance between drill and hole
|
400mm
|
|
Mud Pump
|
|
|
Type
|
Horizontal single urn twin-action
|
|
Displacement
|
170L/min
|
|
Diesel engine
|
S1115 Model 22HP
|
|
Electric motor
|
Y160M-4 15kw 1440r/min
|
|
Maximum pressure
|
1.5Mpa
|
|
Work pressure
|
0.7Mpa
|
|
Water inlet caliber
|
40mm
|
|
Water to exit caliber
|
30mm
|
