Product Details:
Payment & Shipping Terms:
|
| Product Name: | 12 HP Power Portable Deep Water Well Drilling Rig | Drilling Rod Diameter: | 42mm Or 50 Mm |
|---|---|---|---|
| Drilling Depth: | 200 Meters | Hole Diameter: | 300mm |
| OEM: | Avaliable | After Sales Service: | Video Support |
| Power: | Diesel Engine | Weight: | 650kg |
| High Light: | water borehole drilling equipment,hydraulic water well drilling machine |
||

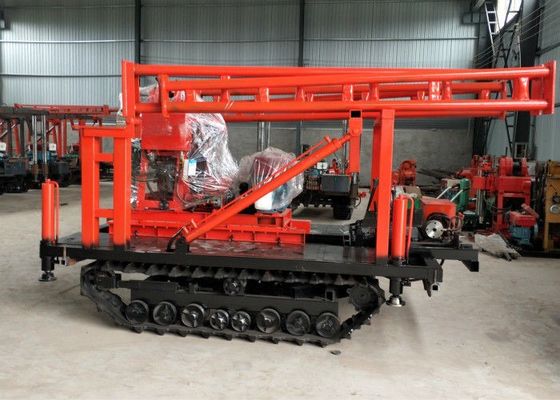

12 HP Power Portable Deep Water Well Drilling Rig Digging Equipment For Rock Layer
Product Information:
GK200 drilling rig is suitable for drilling wells, general exploration, geophysical prospecting, road and construction exploration, and blasting holes.It is widely used and hydraulic feeding , water source and other similar engineering drilling holes.
Product Tech Data:
| Drilling Rig | |
| Drilling diameter(mm) | 75,91,110,130,150,300 |
| Drilling depth (m) | 200,150,100,70,50,30 |
| Drill pipe diameter (mm) | 42,50 |
| Drilling angle(°) | 90~75 |
| Equipment size(L * B * H) | 1730 * 860 * 1360 (mm) |
| Rig weight (except engine) | 700 |
| Mobile device | |
| Moving length | 350mm |
| Leave distance | 300mm |
| Gyrator | |
| Spindle speed (four gear) (r/min) | 115,230,505,1010 |
| Spindle travel(mm) | 450 |
| Spindle no-load lifting maximum moving speed(m/s) | 0.05 |
| Spindle no load drop maximum movement speed(m/s) | 0.067 |
| Spindle maximum feed pressure(KN) | 15 |
| Spindle maximum lifting force(KN) | 25 |
| Spindle maximum output torque(KN• m) | 1.5 |
| Winch assembly | |
| Winch maximum lifting force (single rope) | 20 |
| Reel speed (r/min) | 20,39,85,170 |
| Reel circumferential speed(m/s) | 0.172,0.345,0.738,1.476 |
| Reel diameter(mm) | 140 |
| Wire rope diameter(mm) | 9.3 |
| Wire rope density (m) | 40 |
| Brake diameter(mm) | 278 |
| Brake band width (mm) | 50 |
| Oil pump | |
| Oil pump type | YBC -20/125 |
| Nominal pressure (Mpa) | 12.5 |
| Rated flow(ml/r) | 20 |
| Rated speed(r/min) | 800-2500 |
| Diesel engine or motor | |
| Diesel engine | 1115 |
| Rated power (KW) | 16.2 |
| Rated speed (r/min) | 2200 |
| Rated pressure(Mpa) | 12.5 |
| Motor type | Y160M - 4 |
| Rated power (KW) | 11 |
| Rated speed (r/min) | 1460 |
Product Features:
Product application:
It has the advantages of light weight, compact structure, good disassembly performance and convenient handling. It can be disassembled and moved in mountainous areas. Because it is equipped with a pair of rubber wheels, it can be used to move the construction hole position in cities and other flat areas
Our Company Main Products
We are specializing in the production and processing of core drilling rigs, crawler drilling rigs, various crawler chassis, various types of mud pumps, various crawler transport vehicles and other products. It is one of the excellent manufacturers of similar products in North China with strong technical force
