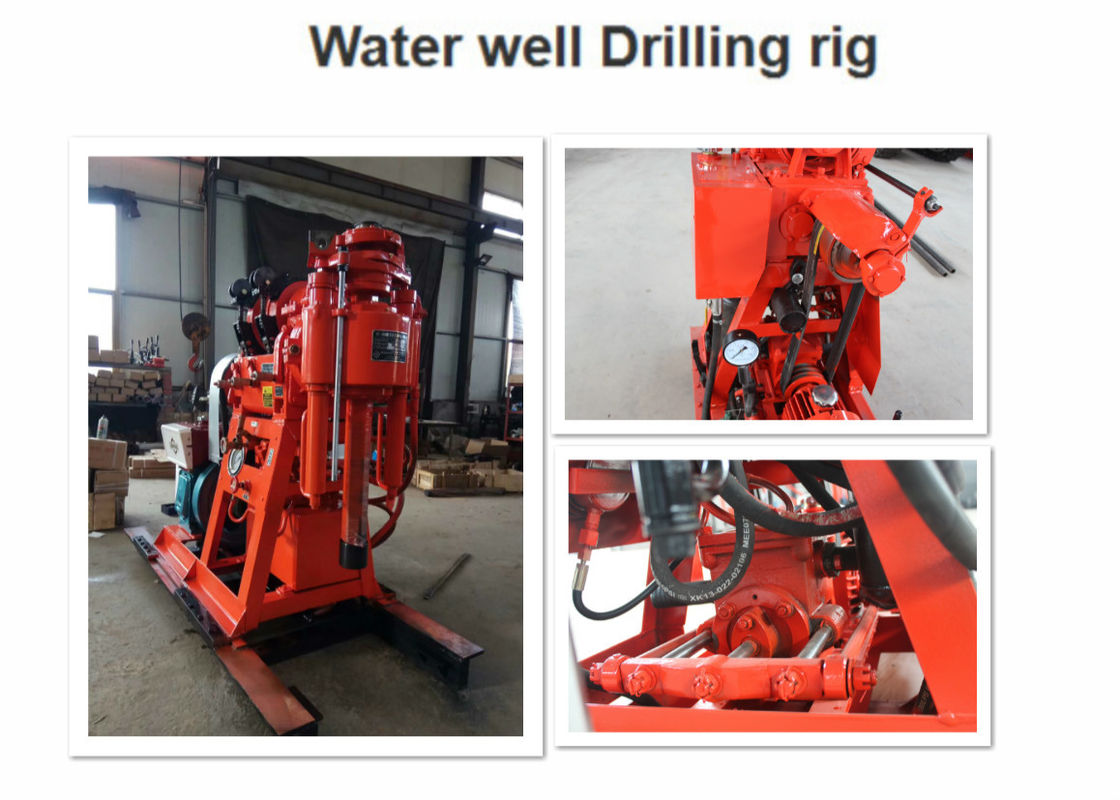

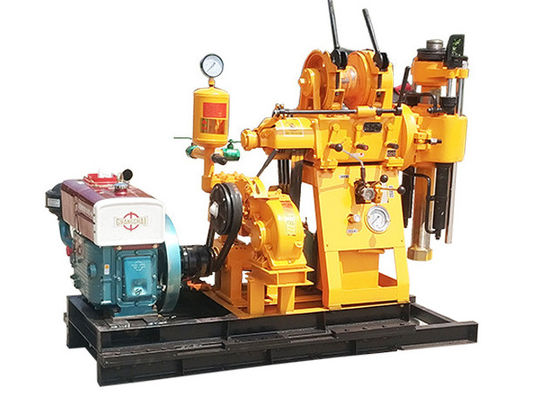

Hydraulic Feeding Water Well Borehole Drilling Rig , Engineering Drilling Rig

Hydraulic Feeding Core Borehole Drill Rig With 200 mm Diameter For Water Well

Comapny Introduction

As one of the leading and most respected drilling rigs companies in China, Jinzhou ShiTan mechanical company is prepared to handle any of your drill needs.

We can supply various type of drill rigs, liking Track-Mounted Rigs, Trailer-Mounted Rigs, which are widely applied to the exploration, geophysical exploration, road and building exploration and small water well drilling, etc. Besides we also produce various size drill bits, drill rods and other relevant drill accessories.

Drilling rig parameters

Simple Drill parameter

Model ST-180

Drilling depth:180m
Dia.hole:φ200mm

Length of rod:2 or 3 m

Dia drill rod: 42mm

Dimensions:1640*1030*1440mm

Spindle speed(3-speed):142,285,570r/m

Final hole dia: 75mm

Drilling angle: 90 °~75 °

Drill weight: 480kg

Dimensions: 1960*850*1340mm

Packing details

Outside package: Standard export wooden cases

Inner package: Stretch film

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order
