| Name: | Borehole Drilling Rig | Guarantee Time: | 1 Year |
|---|---|---|---|
| Weight: | 600kg | Color: | Yellow |
| High Light: | water borehole drilling equipment,hydraulic water well drilling machine |
||

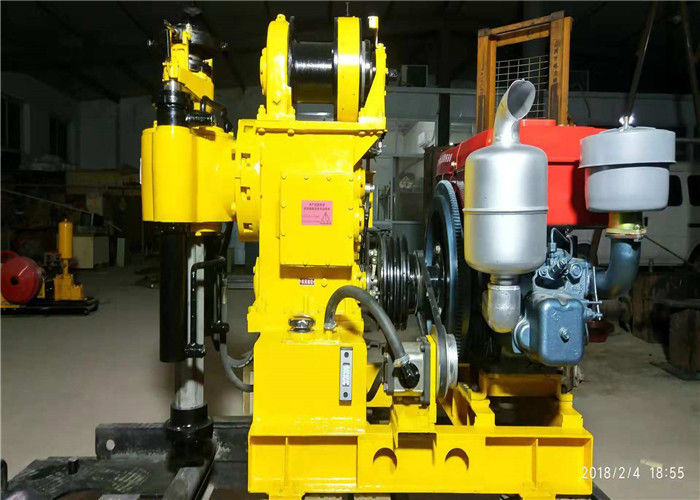

200m Water well drilling rig Borehole drilling rig Mine drilling rig 6-9M/hour
Description of Borehole drillig rig :
Water well drilling rig is also called bore hole drilling rig ,it can be used in many different field like :
Geological comprehensive survey, road and high-rise building foundation exploration, concrete structure holes, river embankments, roadbed grouting and grouting, civil wells
Borehole drilling rig Character:
Centralized handles, easy operation, safe and reliable.
Technical parameter of Borehole drilling rig
| Drilling depth | 200m |
| Max open hole caliber | 300mm |
| End hole caliber | 75mm |
| Drill rod caliber | 60mm |
| Drilling angle | 90°~75° |
| Drill weight (without power) | 975kg |
| Triangle convert belt | B950 x 4 B1700 x 3 |
| The main machine moving distance | 300mm |
| Power | Diesel engine 22KW /Electric motor 15kw |
| Spindle | |
| spindle speed | 64, 128, 287, 557r/min |
| Spindle stroke | 450mm |
| Hoist | |
| Max.lifting capacity | 2400kg |
| Single line lifting speed | 0.41, 0.82, 1.64m/s |
| Wire rope caliber | 13mm |
| Wire rope length | 35m |
| Reel diameter | 140mm |
| Hug floodgate caliber | 260mm |
| Hug floodgate belt width | 70mm |
| Mud pump | |
| Type | Horizontal single-urn twin-action |
| Displacement | Diesel engine 170L/min Electric motor 150L/min |
| Maximum pressure | 3Mpa |
| Work pressure | 1.5Mpa |
| Inlet pipe caliber | 40mm |
| Outlet pipe caliber | 30mm |
| Triangle convert belt | B1728mm |
| Hydraulic oil pump | |
| Type | CBT-F-314 |
| Triangle convert belt | B1100 X 1 |
