| Type: | Core Drilling Machine | Model Numbe: | XY--1A |
|---|---|---|---|
| Drilling Depth: | 150m | Application: | Water Well |
| Max. Open Hloe Caliber: | 75-220mm | Power Type: | Diesel |
| Usage: | Water Well,water Well.core Sample | Product Name: | Tractor Mounted Water Well Drilling Rig/core Drilling Machine,diamond Core Drilling Rig |
| Spindle Speed: | 570 R/min | Drilling Angle: | 0-360 |
| High Light: | rock core drilling machine,geological drilling machine |
||

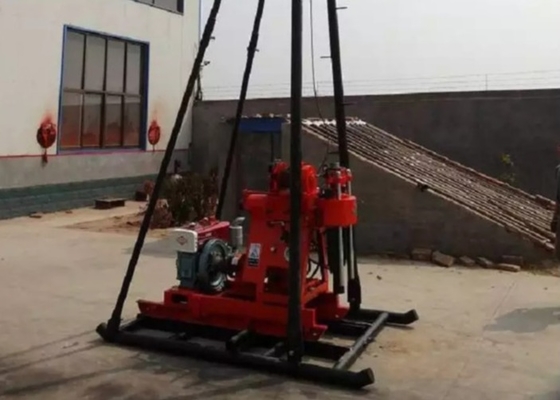

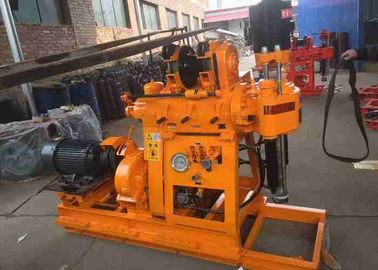

Light Weight Core Drilling Machine with 30-300 m Drilling Depth
Description:
Core drilling machine is is mainly used for geological exploration, hydro power project, road and railway construction, building project and big diameter water well project,etc.
Water Well Drilling Rig parameters
| XY-1A Type | |||
| Drill | Swivel Head | ||
|
Drilling depth
|
Max.150m |
Spindle speed
|
1010,790,470,295,140(r/min) |
|
Hole diameter
|
Max.150m | Spindle stroke | 450kmm |
| Drill rod diameter | 42.50mm | Spindle pull-down | Max.15KN |
| Angle range | 90-75 | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump | ||
| Model | YBC-12/125 | Model | Horizontal reciprocating single-acting piston pump |
| Rated pressure | 12.5Mpa | Working pressure | Max. 1.25Mpa |
| Flow speed | 8ml/r | ||
| Rated speed | 1500r/min | ||
| Hoist | Power(diesel) | ||
| Max. lifting capacity | 15KN | Model(diesel engine) | 1105 |
| Hoisting drum revolution |
121,76,36(r/min)
|
Rated power | 18KW |
| Drum diameter | 140mm | Rated speed | 2200r/m |
| WEIGHT | AROUND 600KG | ||
| SIZE | 1620*970*1560mm | ||
Features:
1. Low cost, high efficency, resonable price
2. Good stability and high reliability.
3. Light Weight
4. No exposure of bevel gear for the case opening, which enables the accuracy and reliability of the falling-in of gears, free from any pollution and with a long service life.
5. Perfect frame's rigidity ,low center of gravity and good stability.
