Light Weight Diamond Drilling Equipment 30-300m For Water Well 13000w Power

Large Image : Light Weight Diamond Drilling Equipment 30-300m For Water Well 13000w Power

Product Details:

Place of Origin:	China
Brand Name:	ShiTan
Certification:	ISO9001
Model Number:	XY--1A

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard Export package
Delivery Time:	Within 7-12 days
Payment Terms:	L/C,D/A,T/T,Western Union
Supply Ability:	2000set/year

Contact Now

Detailed Product Description

Type:	Core Drilling Machine	Model Numbe:	XY--1A
Drilling Depth:	150m	Application:	Water Well
Max. Open Hloe Caliber:	75-220mm	Power Type:	Diesel
Usage:	Water Well,water Well.core Sample	Product Name:	Tractor Mounted Water Well Drilling Rig/core Drilling Machine,diamond Core Drilling Rig
Spindle Speed:	570 R/min	Drilling Angle:	0-360
Highlight:	rock core drilling machine , geological drilling machine

Light Weight Diamond Drilling Equipment 30-300m For Water Well 13000w Power

Product Specifications

Attribute	Value
Type	core drilling machine
Model Number	XY--1A
Drilling depth	150m
Application	water well
Max. open hole caliber	75-220mm
Power type	Diesel
Usage	Water Well, water well core sample
Spindle speed	570 r/min
Drilling angle	0-360°

Product Description

The XY-1A Core Drill Rig is a versatile drilling solution designed for geological exploration, hydro power projects, road and railway construction, building projects, and large diameter water well projects.

Technical Parameters

Component	Specification
Drilling Depth	Max. 150m
Spindle Speed	1010, 790, 470, 295, 140 (r/min)
Hole Diameter	Max. 150m
Spindle Stroke	450mm
Drill Rod Diameter	42.50mm
Spindle Pull-down	Max. 15KN
Angle Range	90-75°
Spindle Lifting Capacity	Max. 25KN
Oil Pump Model	YBC-12/125
Water Pump Model	Horizontal reciprocating single-acting piston pump
Rated Pressure	12.5Mpa
Working Pressure	Max. 1.25Mpa
Flow Speed	8ml/r
Rated Speed	1500r/min
Hoist Capacity	Max. 15KN
Diesel Engine Model	1105
Rated Power	18KW
Rated Speed	2200r/m
Weight	Approx. 600KG
Dimensions	1620×970×1560mm

Applications

Geothermal pipe-installing for heat pump
Small-diameter hole foundation piling drilling
Construction drilling for prospection, geotechnical investigation
Projects including railway, road, port, bridge, water conservancy and hydropower
Tunnel, well, industrial and civil construction drilling
Coal mining exploration
Small hole diameter water well drilling

Key Features

Cost-effective solution with high efficiency
Excellent stability and reliability
Lightweight design for improved portability
Enclosed bevel gear system prevents contamination and extends service life
Robust frame construction with low center of gravity for superior stability

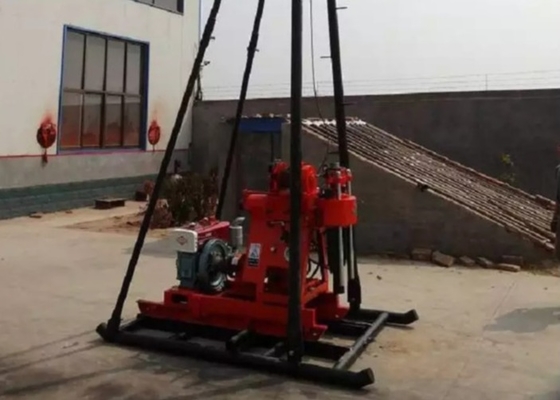

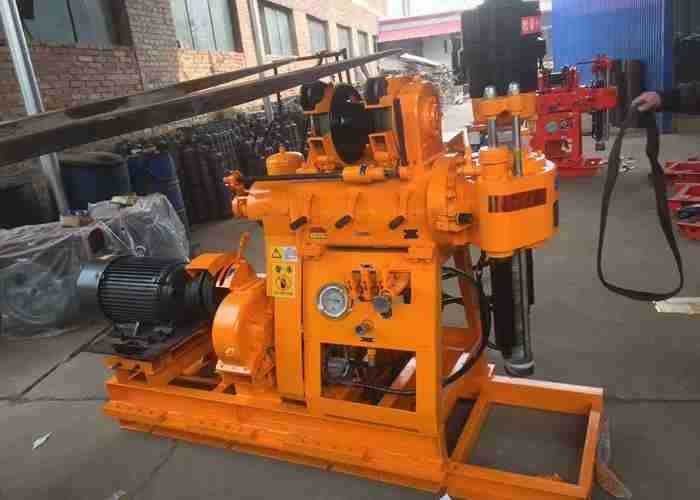

Product Images
