XY-1 Portable Water Well Drilling Equipment For Irrigation 100 Meters Depth With Diesel Engine

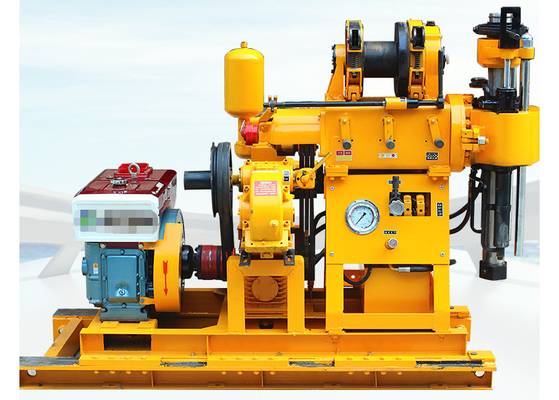

Large Image : XY-1 Portable Water Well Drilling Equipment For Irrigation 100 Meters Depth With Diesel Engine

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	xy-1

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD2800-USD4200
Packaging Details:	Plastic film and Standard export wooden box
Delivery Time:	7-10 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Product Name:	XY-1 Portable Water Well Drilling Rig	Drilling Depth:	100m
Drill Rod Diameter:	42mm	Diesel Engine:	12.1KW
Rated Speed:	2200r/min	Oil Pump Pressure:	12.5mpa
Spindle Speed:	142/285/570r/min	Machine Size:	164010301440mm
After-sales Service Provided:	Video Technical Support	Warranty:	12 Months
Certification:	ISO9001,	Power Type:	Diesel Engine
Highlight:	water borehole drilling equipment , hydraulic water well drilling machine , Portable Water Well Drilling Equipment

XY-1 Portable Water Well Drilling Equipment For Irrigation 100 Meters Depth With Diesel Engine

Product Specifications

Attribute	Value
Product Name	XY-1 Portable Water Well Drilling Rig
Drilling Depth	100m
Drill Rod Diameter	42mm
Diesel Engine	12.1KW
Rated Speed	2200r/min
Oil Pump Pressure	12.5mpa
Spindle Speed	142/285/570r/min
Machine Size	164010301440mm
After-sales service	Video technical support
Warranty	12 months
Certification	ISO9001
Power type	Diesel Engine

Product Overview

The XY-1 Portable Water Well Drilling Rig is designed for remote locations where portability is essential. Its hydraulic system provides powerful drilling capability through tough soil conditions, including rock formations. The compact design allows for easy transportation and assembly in challenging environments.

Technical Parameters

Parameter	Value
Drilling depth	100m
Drill Rod diameter	42mm
Max. open hole caliber	110mm
Drilling angle	90°~75°
Drill weight (No include power)	500kg
Machine dimensions	164010301440mm
Spindle speed	142/285/570r/min
Spindle stroke	450mm
Max. single line hoisting capacity	10KN
Wire rope diameter	9.3mm
Mud pump displacement	95L/min
Maximum pressure	1.2Mpa

Key Advantages

Rotary percussive drilling capability
Wide range of drilling angles for surface and underground applications
Easy disassembly for transportation to remote locations
Excellent stability and high reliability
Compact structure with integrated water pump

Applications

Survey and prospecting operations
Geophysical exploration
Construction and road building projects
Blasthole drilling applications
Drilling through various strata including sandy clay and bedrock (grade 2-9)
Maximum drilling depth of 100m (120m under optimal conditions)
Hole diameters from 75mm to 130mm depending on requirements

Frequently Asked Questions

Q: Can I request customize service?

A: Yes, we offer customization of voltage, material, color, nameplate, and other special requirements.

Q: What are your factory advantages?

A: We provide accurate market analysis, reliable investment advice, proper equipment selection, quick problem resolution, and dependable after-sales service to minimize purchasing risks.

Q: What services do you provide after order?

A: We offer full order tracking including production monitoring, professional quality control, efficient logistics coordination, and experienced customs documentation preparation.

Q: How do you handle after-sales issues?

A: We provide solutions based on video or picture documentation of any issues. For problems under our responsibility, we guarantee 100% resolution to ensure customer satisfaction and long-term cooperation.

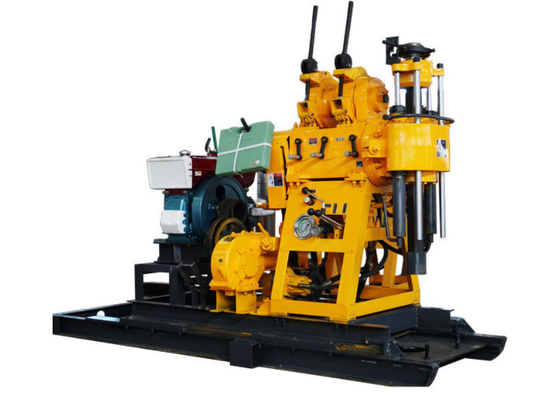

Product Images
