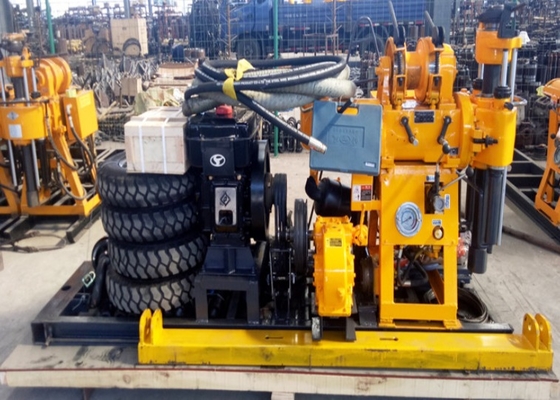

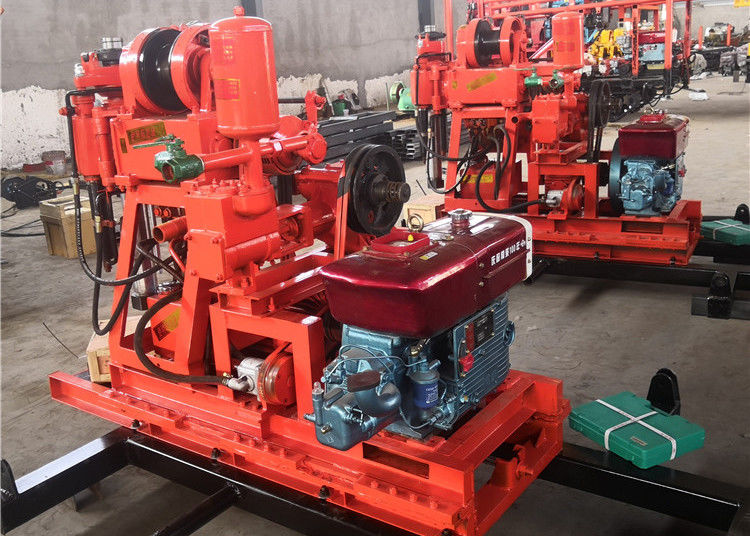

GK 200 Geological Drilling Rig Machine for Highway Construction Servery
Product Description
This is widely utilized and featured in high power and hoisting load(2T), large torque transmission, etc. The rotating speed of vertical hexagonal spindle varies between 71r/min-825r/min. It is suited for the geotectonic survey, geological core drilling, small hole drillings for grout, blast and water well in railway, water coservancy, bridge, dam foundation and other constructions. Diamond drill vit, alloy drill bit and steel roller drill bit are available for drilling according to different geological structures.
Product Parameter
| Rated drilling depth |
200m |
| Rated boring diameter |
200mm |
| Vertical shaft rotation speed (4 shifts) |
118, 236, 505, 1010.r/min |
| Vertical shaft max. output torque |
1500N*m |
| Max. hositing weight single line) |
17KN |
| Drilling rod diameter |
42mm |
| Drilling dip angle |
90~75° |
| Drill outside diameter (L*B*H) |
1433*697*1273mm |
| Drill weight |
500kg |
| max. boring diameter |
300mm |
Product Feature
1. With hydraulic automaatic feeding device, elevated drilling efficiency.
2. Large torque and drilling diameter.
3. With a spherial jaw holding mechanism and the rod replacement without breakdwn, high efficiency.
4. Compact structure, small volume, lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.
5. Adoping large drive pipe, double guide rod, increase the stability.
