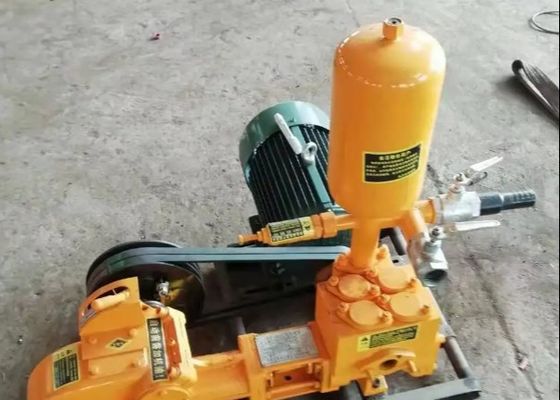

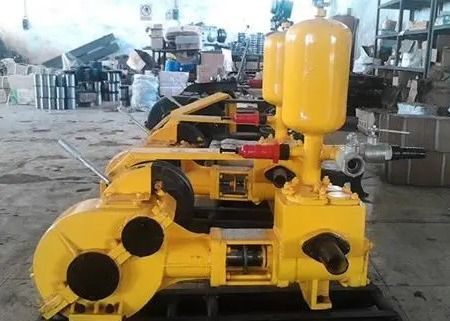

Horizontal Electric Mud Pump / Single Stage Triplex Plunger Pump

Horizontal Electric Mud Pump / Single Stage Triplex Plunger Pump
Horizontal Electric Mud Pump / Single Stage Triplex Plunger Pump

Large Image :  Horizontal Electric Mud Pump / Single Stage Triplex Plunger Pump

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 20000 sets per year
Detailed Product Description
Model Number: BW250 Structure: Single-stage Pump
Usage: Water Application: Submersible
Power: Electric
High Light:

portable mud pump

,

reciprocating mud pump

Hot Sale Horizontal Drilling Triplex Mud Pump Mud Suction Pump



Product Description:



1.BW mud pump is widely used for grouting and mud jacking in engineering construction.



2.BW mud pump have four gear shifts.Output and drilling depth are adjustable,so it can be used to grout cement slurry or equipped with drilling machine.



3.BW mud pump is widely used in railway, hydraulic engineering, metallurgical engineering, building construction, geological exploration, engineering exploration.



Product Parameter:





technical parameter model BW150 mud pump model BW-250 mud pump(injection pump) model BW320-Z mud pump
max traffic 150L/min 150L/min 320L/min
maximum pressure 70kg/cm2 80kg/cm2 100kg/cm2
driving power 7.5kw 15kw 30kw
inlet pipe diameter 50mm 75mm 75mm
outlet pipe diameter 32mm 50mm 50mm
drilling hole depth   diamond drilling<1500 diamond drilling<1800
    hard alloy drilling<1000 cementid carbide drilling<1500
outline dimension   1100*995*650 1280*855*750
weight 560kg 760kg 1000kg


Horizontal Electric Mud Pump / Single Stage Triplex Plunger Pump 0
