|Product Name:||GK 200 Diamond Core Drilling Machine With 200 Meters Depth Customized Hole Diameter For Exploration||Type:||Core Or Rotary Drilling Rig|
|Power Type:||Diesel Or Electric||Usage:||Geological Core Drilling And Physical Exploration|
|After-sales Service Provided:||Video Technical Support||Color:||Blue ,yellow ,red|
rock core drilling machine,
geological drilling machine

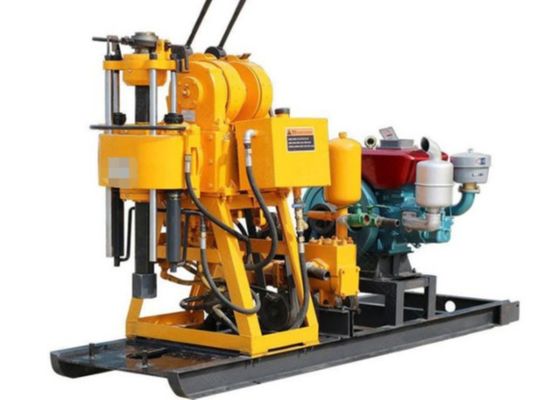

GK 200 Diamond Core Drilling Machine With 200 Meters Depth Customized Hole Diameter For Exploration
GK 200 Diamond Core Drilling Machine Product Description:
GK 200 drilling rig a kind of widely used and hydraulic feeding drill, which has the characteristics of big power, great lifting force (2T) and high transmission torque. It can be used in engineering geological survey of railway, hydropower, transportation, bridge, foundation and other buildings, geological core drilling and physical exploration and so on.
GK 200 Diamond Core Drilling Machine Product Parameter:
|Drilling depth (m)||200,150,100,70,50,30|
|Drill pipe diameter (mm)||42,50|
|Equipment size(L * B * H)||1730 * 860 * 1360 (mm)|
|Rig weight (except engine)||700|
|Spindle speed (four gear) (r/min)||115,230,505,1010|
|Spindle no-load lifting maximum moving speed(m/s)||0.05|
|Spindle no load drop maximum movement speed(m/s)||0.067|
|Spindle maximum feed pressure(KN)||15|
|Spindle maximum lifting force(KN)||25|
|Spindle maximum output torque(KN• m)||1.5|
|Winch maximum lifting force (single rope)||20|
|Reel speed (r/min)||20,39,85,170|
|Reel circumferential speed(m/s)||0.172, 0.345, 0.738, 1.476|
|Wire rope diameter(mm)||9.3|
|Wire rope density (m)||40|
|Brake band width (mm)||50|
|Pump type||Horizontal single cylinder double acting|
|Maximum displacement (motor)(L/min)||95 (77)|
|The maximum allowable pressure (Mpa)||1.2|
|Work pressure (Mpa)||0.7|
|Cylinder diameter (mm)||80|
|Oil pump type||YBC-20/125|
|Nominal pressure (Mpa)||12.5|
|Diesel engine or motor|
|Rated power (KW)||16.2|
|Rated speed (r/min)||2200|
|Motor type||Y160M - 4|
|Rated power (KW)||11|
|Rated speed (r/min)||1460|
GK 200 Diamond Core Drilling Machine Product Advantages
Diamond drill bit,alloy drill bit and steel roller drill bit and so on are available for drilling according to different geological structure.
When the final hole are respectively 75mm and 46mm in diameter, the rated hole depths are 100m and 180m.The max of depth may not exceed 110% of that drilled in each hole. The max allowable hole diameter is 150mm
With the hydraulic feeding mechanism,improve the drilling efficiency,reducing the labor intensity of workers.
The rig is equipped with a ball on a cassette holding mechanism and a six side rod, the rod can be replaced without shutdown, high work efficiency, safe and reliable
Furnished with hole bottom pressure gauge pressure indicator,and easy to master the status inside the hole
The handle centered, convenient operation.
The drilling machine has the advantages of compact structure,small volume,light weight,convenient move,decomposition and strong,suitable for the plains or mountain areas.
Adopting large Kelly,double guide pipe. Increase the stability .
Soil Sampling Procedure
Divide the field into different homogeneous units based on the visual observation and farmer’s experience.
Remove the surface litter at the sampling spot.
Drive the auger to a plough depth of 15 cm and draw the soil sample.
Collect at least 10 to 15 samples from each sampling unit and place in a bucket or tray.
If auger is not available, make a ‘V’ shaped cut to a depth of 15 cm in the sampling spot using spade.
Remove thick slices of soil from top to bottom of exposed face of the ‘V’ shaped cut and place in a clean container.
GK 200 Drilling Rig Product FAQ
Q1: - Can i request customize service?
A: Yes, dear sir, we can also customize voltage, material, colour, nameplate etc., and meet your other special request.
Q2: - What is the advantage of your factory?
A: Here we're your "Chinese Partner", accurate market sharing, reliable investment suggestion, select right machine, quick problem solver, reliable after-sales service, minimize purchasing risk.
Q3: - What service do you supply after order?
A: Your order will be fully tracked including production, professional quality control, strong logistics teamwork working and experienced customs documents preparation, you can get One-stop service from us.
Q4: - How to solve the after-sales problem?
A: You can send us a video or pictures to explain the problem, later we can give you a solution to solve it, if it is our responsibility, we will 100% in charge of it and try our best to make you satisfied, we pursue long term cooperation always.
