Widely Used Drilling Mud Pump for 200m Borehole Water Well Drilling

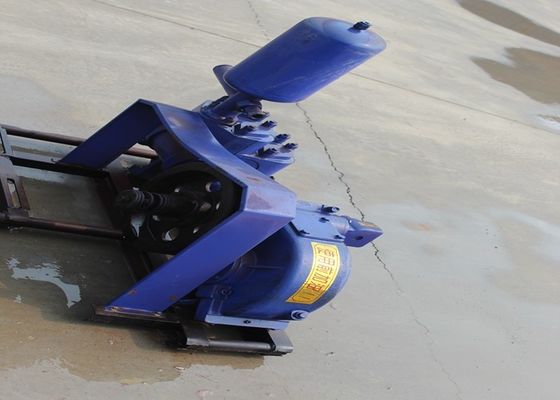

Large Image : Widely Used Drilling Mud Pump for 200m Borehole Water Well Drilling

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-10 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	20000 sets per year

Contact Now

Detailed Product Description

Type:

Horizontal Three-cylinder Double-actiong Piston Pump

Cylinder Diameter:

65 Mm

Highlight:

portable mud pump

reciprocating mud pump

Widely Used Drilling Mud Pump for 200m Borehole Water Well Drilling

Product Attributes

Attribute	Value
Type	Horizontal three-cylinder double-action piston pump
Cylinder Diameter	65 mm

Product Description

The mud pump is an essential piece of equipment for geological drilling that delivers circulating mud water into wells to:

Bring rock cuttings to the surface
Cool drill bits
Lubricate the drill stem
Protect the well wall

The BW-250 model features multi-speed shift gears for variable displacement, with a compact structure, light weight, and easy mobility and operation.

Technical Specifications

Parameter	Value
Type	Horizontal, triplex, single acting reciprocating piston pump
Stroke	100 mm
Cylinder diameter	80mm \| 65mm
Gear	I \| II \| III \| IV \| I \| II \| III \| IV
Speed of the pump	200 \| 116 \| 72 \| 42 \| 200 \| 116 \| 72 \| 42
Displacement (L/minute)	250 \| 145 \| 90 \| 52 \| 166 \| 96 \| 60 \| 35
Pressure (MPa)	2.5 \| 4.5 \| 6.0 \| 6.0 \| 4.0 \| 6.0 \| 7.0 \| 7.0
Volume ratio	85%
Efficiency	72%
Power	15 Kw
Triangular section belts (mm)	B*5 410 mm
Input speed	500 r/min
Maximum height of suction pipe	2.5 m
Diameter of suction pipe	76 mm
Diameter of discharge pipe	51 mm
Weight (including power machine)	Y160L-4-B3 motor 644 Kg L28 diesel engine 708 Kg
Dimensions	1658×890×960 mm (including motor) 1876×1312×990mm (including diesel engine)
