76mm 89mm Water Well Drilling Pipe , Drill Extension Rod For Different Soil Layers

Mr. Zhu is worth to be trust, he has a good team, they provide us good service and reliable quality cable.

—— Aaron

Mr. Zhu provide us Water Well Drilling Rig with good price. thank you.

—— Julien

I'm Online Chat Now

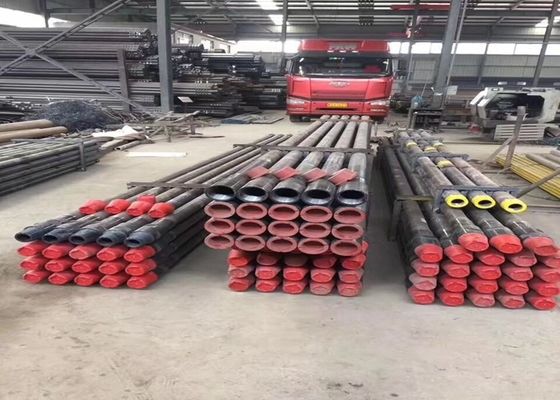

76mm 89mm Water Well Drilling Pipe , Drill Extension Rod For Different Soil Layers

76mm 89mm Water Well Drilling Pipe , Drill Extension Rod For Different Soil Layers
76mm 89mm Water Well Drilling Pipe , Drill Extension Rod For Different Soil Layers 76mm 89mm Water Well Drilling Pipe , Drill Extension Rod For Different Soil Layers

Large Image :  76mm 89mm Water Well Drilling Pipe , Drill Extension Rod For Different Soil Layers

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO
Model Number: 76mm ,89mm
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 1000000 Sets/month
Detailed Product Description
Product Name: 76mm 89mm Water Well Drilling Pipe Material: Steel
Application: Well Drilling, Well Drilling Diameter: 76mm,89mm
Weight: 18-38kg Size: Customized Size
Length: 1 Meter,2 Meter,3 Meter Warranty: 12 Month
Wall Thickness: 4.2mm-8mm Place Or Origin: Hebei ,China
High Light:

mining drill rods

,

tapered drill rod

76mm 89mm Water Well Drilling Pipe , Drill Extension Rod For Different Soil Layers





Product Description:


Drill pipe comply with the provisions under the Standards API SPEC 5DP and API SPEC7. The grade of steel for the drill pipe will
be determined according to the requirements of Group 1 and Group 3 of API SPEC 5DP.
(i.e.: Group 1--Grade E; Group 3--Grade X-95, Grade -G-105 and Grade -S-135)
As per requirements of customers, drill pipe joints at the same level will be provided, and manufactured drill pipe joints will
comply with the provisions under the Standard API SPEC 7.



Product Specification:



Size (in)

Nominal Weight

(1b/ft)

OD of Pipe Body

Wall Thickness

of Pipe Body

Grade Upset Type Conn. Type OD of Pin and Box ID of Pin
(in) (mm) (in) (mm) (in) (mm) (in) (mm)
2 3/8 6.65 2 3/8 60.32 0.280 7.11 EXGS EU NC26 (2 3/8 IF) 3 3/8 85.70 1 3/4 44.45
2 7/8 10.40 2 7/8 73.02 0.36 9.19 NC31 (2 7/8 IF) 4 1/8 104.80 2 50.80
3 1/2 13.30 3 1/2 88.90 0.37 9.35 NC38 (3 1/2 IF) 5 127.00 2 7/16 61.91
3 1/2 15.50 3 1/2 88.90 0.45 11.40 NC38 (3 1/2 IF) 5 127.00 2 1/8 53.98
4 14.00 4 101.60 0.33 8.38 NC46 (4 IF) 6 154.20 3 1/4 82.55
4 1/2 16.60 4 1/2 114.30 0.34 8.56 IEU NC40 (4 IF) 6 1/4 158.80 3 76.20
4 1/2 20.00 4 1/2 114.30 0.43 10.92 NC46 (4 IF) 6 1/4 158.75 2 1/2 63.50
5 19.50 5 127.00 0.36 9.19 NC50 (4 1/2 IF) 6 5/8 168.30 3 1/4 82.55
5 19.50 5 127.00 0.36 9.19 5 1/2 FH 7 177.80 3 3/4 95.25
5 25.60 5 127.00 0.50 12.70 NC50 (4 1/2 IF) 6 5/8 168.28 2 3/4 69.85
5 25.60 5 127.00 0.50 12.70 5 1/2 FH 7 1/4 184.15 3 1/4 82.55
5 1/2 21.90 5 1/2 139.70 0.36 9.17 5 1/2 FH 7 1/4 184.15 3 1/2 88.90
5 1/2 24.70 5 1/2 139.70 0.42 10.54 5 1/2 FH 7 1/4 184.15 3 1/2 88.90
6 5/8 25.20 6 5/8 168.28 0.33 8.38 6 5/8 FH 8 1/4 209.55 4 3/4 120.65
6 5/8 27.70 65/8 168.28 0.36 9.19 6 5/8 FH 8 1/4 209.55 4 3/4 120.65



Product Advantages



1. The geological drill pipe has high compressive strength and strong abrasion resistance, which can drill more reasonably and effectively, and can be used for drilling under various geological conditions.

2. The geological drill pipe can bear huge internal and external pressure, distortion, bending and vibration, effectively help the drill bit to drill, and can be used many times in the geological drilling process!

3. Advanced design ideas and advanced friction welding process are adopted to produce and make it have high bending strength, firm welding, high fatigue strength and long service life.



76mm 89mm Water Well Drilling Pipe , Drill Extension Rod For Different Soil Layers 076mm 89mm Water Well Drilling Pipe , Drill Extension Rod For Different Soil Layers 1

76mm 89mm Water Well Drilling Pipe , Drill Extension Rod For Different Soil Layers 2

76mm 89mm Water Well Drilling Pipe , Drill Extension Rod For Different Soil Layers 376mm 89mm Water Well Drilling Pipe , Drill Extension Rod For Different Soil Layers 476mm 89mm Water Well Drilling Pipe , Drill Extension Rod For Different Soil Layers 576mm 89mm Water Well Drilling Pipe , Drill Extension Rod For Different Soil Layers 676mm 89mm Water Well Drilling Pipe , Drill Extension Rod For Different Soil Layers 7
