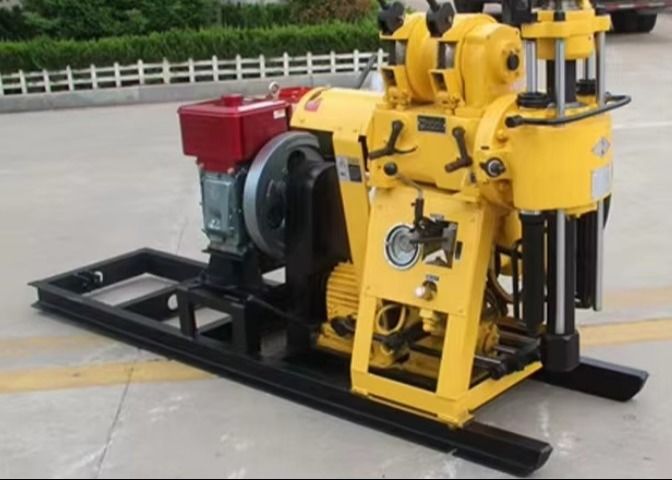

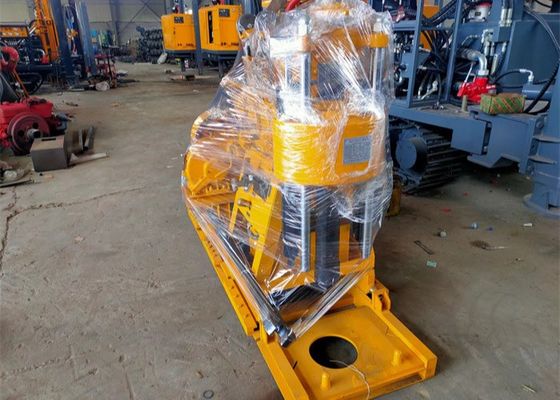

100m Soil Test Drilling Machine Geotechnical Drill Rig With Mud Pump

The Drill Rig Information



Drilling Depth:	100m,70m,50m,30m
The Hole Diameter	75mm,91mm,110mm
Kelly	52*59*4200mm
Drill Pipe Diameter	42mm
Drilling Angle	90°-75°
Rig Dimensions(Length*Width*Height)	1960mm*850mm*1340mm
Weight (excluding power)	480kg
Swivel Head
Spindle speed(3-speed)	142/285/570 r/min
Spindle stroke	450
upward displacement speed
of idling vertical spindle
0.05m/s
Downward displacement speed
of idling vertical spindle
0.067m/s
Spindle pull-down max	15KN
Spindle lifting capacity max	25KN
Gyrator
The Vertical Speed (fore steps)	71,142,310,620 r/min
The Vertical Stroke	450mm
The Maximum Speed Of Vertical Load	0.05m/s
The Vertical Load Down The Maximum Moving Speed	0.067m/s
Max Feeding Force	15KN
Max Lifting	25KN
The Vertical Maximum Moving Speed	1.25 KN.M
Hoist
Max.lifting capacity(1-speed,single rope)	10KN
Cable volume (number) of hoisting drum	27m
Wire rope dia.	9.3mm
Mud Pump
Types	Horizontal reciprocating single-acting piston pump
Displacement max	95 L/min
Equipped with motor	77 L/min
Allowable working pressure max	1. 2Mpa
Continuous working pressure	0.7Mpa
Suction pipe dia	32mm
Discharge pipe dia	25mm





2.  A ball mounted card blessing mechanism replaces the chuck which can carry out without stopping the lever, easy to operate, safe and reliable.

3. Handle concentration, easy operation.

4. It is compact.The drill, water pump and diesel engine are installed on the same base, which occupies a small area.

5. It is light in weight, strong in decomposition and easy to remove .And it can be used in plains and mountains



1.With the hydraulic feeding mechanism, improve the drilling efficiency, reducing the labor intensity of workers.
2.The rig is equipped with a ball on a cassette holding mechanism and a six side rod, the rod can be replaced without shutdown, high work efficiency convenient operation, safe and reliable.
3.Furnished with hole bottom pressure gauge pressure indicator, and easy to master the status inside the hole.
4.The handle centered, convenient operation.
5.The drilling machine has the advantages of compact structure, small volume, light weight, convenient move.
