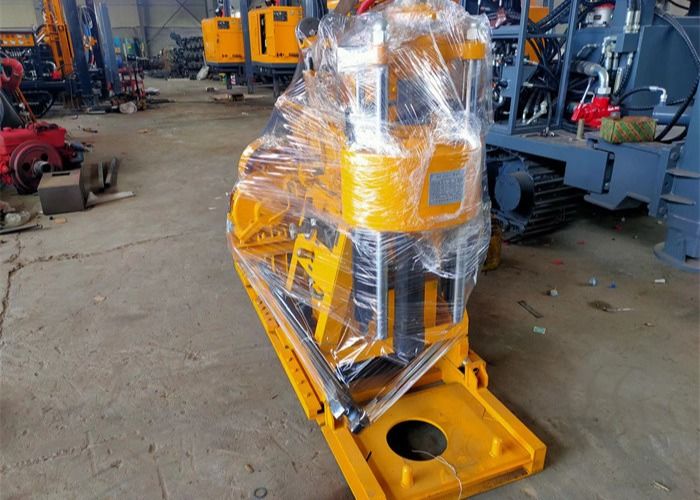

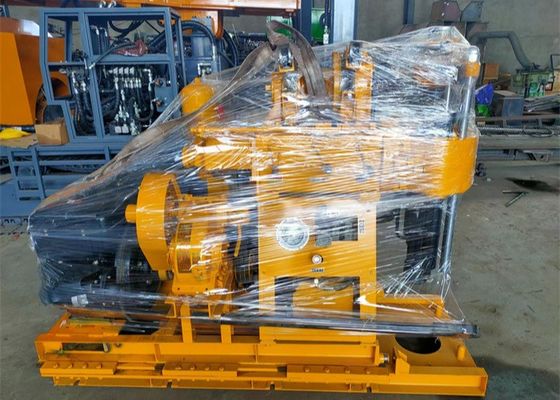

150m Geological Drilling Rig Machine Equipped for Construction Geological Investigation
Product Features:
1. This machine gained 3 national practical new-type patents invention.
2. To be equipped with hexagonal vertical shaft and hexagonal drive drilling rod, with strong rigidity and big transfer torque.
3. To be provided with cone plate friction clutch, being facile to operate, with big transfer torque.
4. To adopt rolling bearing type hoist, with wide brake band and big lifting capacity.
5. To be equipped with speed reducer and sludge pump, being integrated structure.
6. The entire machine is featured by strong adaptability, high motive power, low cost and broad compatibility.
7. To be provided with hydraulic control pressure feed mechanism for the purpose of improvement of construction efficiency.
8. To use hydraulic control well head displacement mechanism for enlargement of initial hole diameter.
Product Parameters:
|
Drilling depth(m)
|
150
|
|
Maximum opening diameter(mm)
|
219
|
|
The final hole diameter(mm)
|
73
|
|
Rod diameter(mm)
|
42/50
|
|
Spindle speed (r/min)
|
140/295/470/790/1010
|
|
Spindle stroke(mm)
|
450
|
|
Hoisting capacity (kn)
|
14
|
|
Steel wire diameter(mm)
|
9.3
|
|
Maximum pressure (mpa)
|
1.2
|
|
Working pressure (mpa)
|
0.7
|
|
displacement(l/min)
|
150
|
|
Hydraulic pump pressure (mpa)
|
1.2
|
|
Hydraulic pump rotation speed (r/min)
|
1800
|
|
Matched driving power (diesel engine and motor)
|
S1105 diesel engine and 11kw motor
|
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
