Xy-1A 150 Meters Vertical Geological Exploration Soil Test Drilling Rig Machine

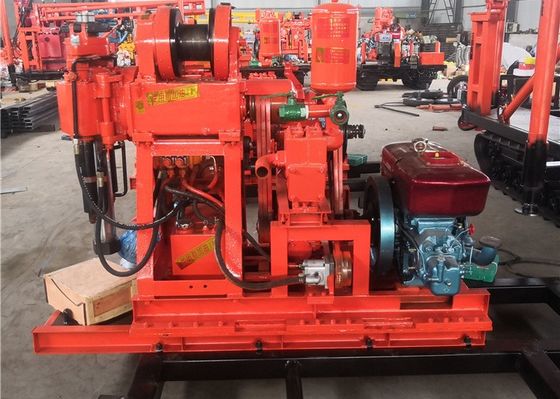

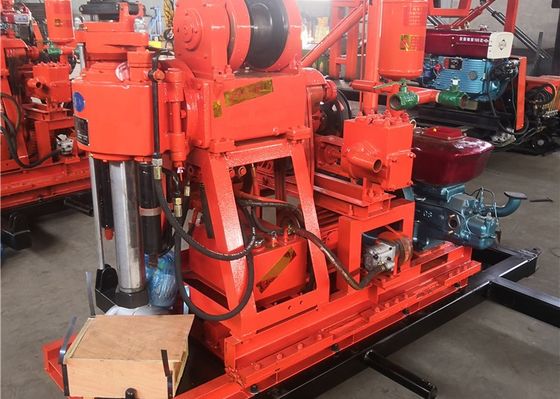

XY-1A Soil Testing Drilling Rig Machine Introduction
This drilling rig is 150 meters drilling depth ,150mm hole diameter ,which is suitable for engineering geological exploration of industrial and civil buildings, railways, hydropower, transportation, bridges, dam foundations and other buildings.It is a kind of hydraulic feeding, high speed, high speed torque belt and portability with pump.Construction drilling of the projects e.g. prospection, geotechnical investigation, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction
XY-1A Soil Testing Drilling Rig Product Tech Data:
| Drill |
Swivel Head |
|
Drilling depth
|
Max.150m |
Spindle speed
|
1010,790,470,295,140(r/min) |
|
Hole diameter
|
Max.150m |
Spindle stroke |
450kmm |
| Drill rod diameter |
42mm |
Spindle pull-down |
Max.15KN |
| Angle range |
90-75 |
Spindle lifting capacity |
Max. 25KN |
| Oil pump |
Water pump |
| Model |
YBC-12/125 |
Model |
Horizontal reciprocating single-acting piston pump |
| Rated pressure |
12.5Mpa |
Working pressure |
Max. 1.25Mpa |
| Flow speed |
8ml/r |
|
|
| Rated speed |
1500r/min |
|
|
| Hoist |
Power(diesel) |
| Max. lifting capacity |
15KN |
Model(diesel engine |
ZS1105 |
| Hoisting drum revolution |
121,76,36(r/min)
|
Rated power |
12.1KW |
| Drum diameter |
140mm |
Rated speed |
2200r/m |
| WEIGHT |
AROUND 600KG |
| SIZE |
1620*970*1560mm |
.XY-1A Soil Testing Drilling Rig Machine Advantages
1) The hydraulic feeding mechanism is adopted to reduce the physical labor intensity of workers
(2) The ball clamp clamping mechanism is used to replace the chuck, which can realize the rod reversing without stopping
(3) You can move the machine to give way to the orifice or open the gyrator to give way to the orifice.
(4) Light weight, strong decomposability, easy to move, suitable for construction in plain and mountainous areas.
(5) The drilling rig is applicable to geological survey exploration, geophysical exploration, road and building foundation exploration, blasting hole drilling and other drilling projects.
(6) Alloy bit, steel particle bit and diamond bit can be selected for drilling according to different formations.
(7) It can drill into grade 2 ~ 9 sandy clay and weathered bedrock.
(8) The rated drilling depth is 150m, and the depth shall not exceed 150m. The rated opening diameter is 110mm, the allowable opening diameter is 150mm
Soil Sampling Procedure
Divide the field into different homogeneous units based on the visual observation and farmer’s experience.
Remove the surface litter at the sampling spot.
Drive the auger to a plough depth of 15 cm and draw the soil sample.
Collect at least 10 to 15 samples from each sampling unit and place in a bucket or tray.
If auger is not available, make a ‘V’ shaped cut to a depth of 15 cm in the sampling spot using spade.
Remove thick slices of soil from top to bottom of exposed face of the ‘V’ shaped cut and place in a clean container.
