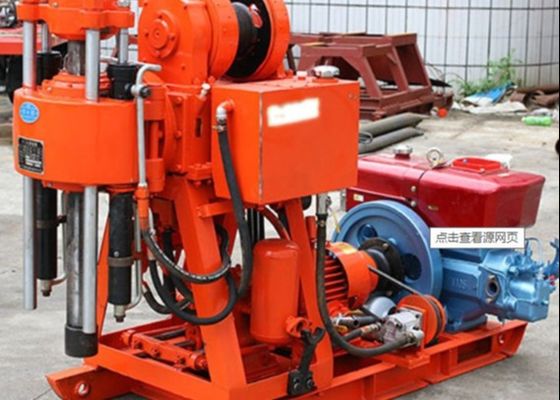

XY-1 Borehole Drilling Sampling Soil Test Drilling Machine For 100 Meters

XY-1 Borehole Drilling Sampling Soil Test Drilling Machine For 100 Meters
XY-1 Borehole Drilling Sampling Soil Test Drilling Machine For 100 Meters
video play

Large Image :  XY-1 Borehole Drilling Sampling Soil Test Drilling Machine For 100 Meters

Product Details:
Place of Origin: China
Brand Name: JINZHOU SHITAN
Certification: ISO9001
Model Number: XY-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Standard Export Package
Delivery Time: 7-12 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 sets per year
Detailed Product Description
Product Name: XY-1 Borehole Drilling Sampling Soil Test Drilling Machine For 100 Meters Drilling Depth: 100 Meters
Drilling Hole Diameter: 100 Mm Type: Core Drilling Rig
Power Type: Diesel Model Number: XY-1
Voltage: 220V/380V Power(W): 15KW
Dimension(L*W*H): 2.75*0.95*1.6m Weight: 1800kg
High Light:

soil testing drilling rig

,

soil investigation machine

XY-1 Borehole Drilling Sampling Soil Test Drilling Machine For 100 Meters





Product Description


This small water well drilling rigs for sale is widely used for geothermal drilling, farm irrigation, house yard, gardens and water well drilling, drilling diameter is 70-350mm, and drilling depth is 80m to 100m. It also can be used in small building piling, like farmhouse or factory,



Product Parameter:



Drill depth 180m
Open diameter φ75-150mm
End hole diameter 75-46mm
Active drill pipe 53/59*4200mm
Drill pipe diameter φ50mm φ42
Drill angle 90°~75°
Matched power(diesel) 13.2/2200kW/r/min
Weight /size 920kg/2400*950*1400
Vertical shaft parameter
Speed 130.300.480.730.830.1045r/min
Stroke 450mm
Winch parameter
Single rope lift 9.6kN
Single rope lifting speed 0.3. 0.8. 1.29. 1.96. 2.23m/s
Drum diameter φ140mm
Wire rope diameter 27m
Wire rope length 35m
Tower parameter
Rated carrying capacity 2t
Effective height 6m
Tower leg size 73mm
Mud pump parameter
Model BW95
Flow 95L/min
pressure 1.2Mpa
Reciprocal time 93/min
Suction pipe diameter φ51mm*4.5m
Outlet high pressure pipe diameter φ32mm*6m



Product Advantage:



1. High rotation speed, six gears, the highest gear 1045r/min, high drilling effciency.

2. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.

3. The machine is equipped with our national patent technology---taper clutch, with charactristics of strong transmission troque, easy operation and free maintenance.

4. For the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.

5. Vertical spidle are fixed by four groups of bearings to ensure that the rotator has enough rigid for gravel layer and other complex geoloical conditions.

6. Light weight, energy saving.
7. Patented product, unique design and simple drilling structure;
8. Easy to transport and can learn how to handle the machine in short time;
9. Can drill through hard stratum, unless thick rock layer ;
10. One person operation, reduce the labor intensity

XY-1 Borehole Drilling Sampling Soil Test Drilling Machine For 100 Meters 0

XY-1 Borehole Drilling Sampling Soil Test Drilling Machine For 100 Meters 1

XY-1 Borehole Drilling Sampling Soil Test Drilling Machine For 100 Meters 2

XY-1 Borehole Drilling Sampling Soil Test Drilling Machine For 100 Meters 3
