Product Details:
Payment & Shipping Terms:
|
| Product Name: | 100 Meters Depth Soil Test Drilling Machine For Engineer Coring | Drilling Depth: | 100m |
|---|---|---|---|
| Type: | Core Drilling Rig | Power Type: | Diesel |
| Usage: | Water Well,Exploration | Voltage: | 380V |
| Weight: | 525KGS Without Motor | Warranty: | 1 Year |
| Drill Rod Diameter: | 42mm | ||
| High Light: | soil testing drilling rig,soil investigation machine |
||

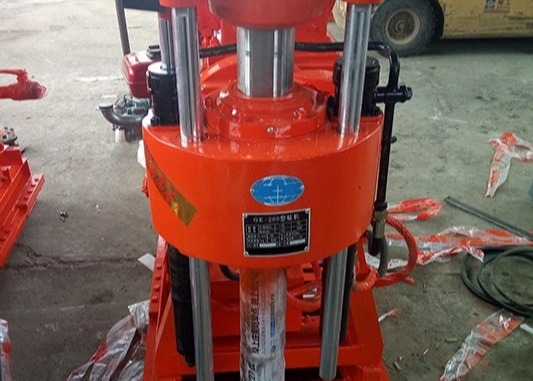

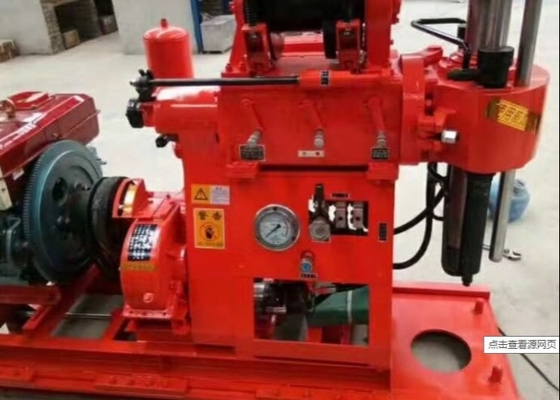

Easy Operated 100 Meters Depth Soil Test Drilling Machine For Engineer Coring
Product Applications:
1. Engineering geological survey of railway, hydropower, traffic, bridge, dam foundation and other buildings.
2. Geological core drilling, physical survey.
3. Small grouting Confucius, blasting hole drilling.
4. Small wells drilled.
Product Features:
1 With hydraulic feed mechanism to improve drilling efficiency, reduce labor intensity.
2 The rig is equipped with a card-holding mechanism and a hexagonal active drill pipe. It can be turned down without stopping the machine. High efficiency, convenient and safe.
3 With a pressure gauge at the bottom of the hole to facilitate the control of the situation inside the hole.
4 Handle centralized, easy to operate.
5 Compact structure, small size, light weight, strong decomposition, easy to relocate.
Product Parameters:
| Drilling depth | 200m, 150m, 100m, 70m, 50m, 30m |
| Hole diameter for different depth | 75mm,91mm,110mm,130mm,150mm,300mm |
| Drill rod diameter | 42mm |
| Angle range | 90°-75° |
| Dimensions(L*W*H) | 1710mm*860mm*1360mm |
| Weight(without power unit) | 525KGS |
| Rig traveling device | XY-1B-150 |
| Migration distance | 350mm |
| Distance from a drilling hole | 300mm |
| Swivel Head | |
| Spindle speed(4-speed) | 71,142,310,620r/min |
| Spindle stroke | 450mm |
| Upward displacement speed of idling vertical spindle | 0.05m/s |
| Downward displacement speed of idling vertical spindle | 0.067m/s |
| Spindle pull-down max | 15KN |
| Spindle lifting capacity max | 25KN |
| Spindle Max Torque | 1.5KN.m |
| Brake dia | 278mm |
| Brake belt width | 50mm |
| Hoist | |
| Max.lifting capacity(single rope) | 20KN |
| Hoisting drum linear velocity(two levels) | 0.172,0.345,0.738,1.476m/s |
| Hoisting drum revolution | 20,39,85,170r/m |
| Drum dia | 140mm |
| Wire rope dia | 9.3mm |
| Wire rope capability | 40mm |
| Oil pump | |
| Model | YBC-20/125 |
| Rated pressure | 12.5Mpa |
| Displacement | 20ml/r |
| Rated speed | 800-2500r/min |
| ST-150 water pump | |
| Model | Hydraulic reciprocating single-acting piston pump |
| Displacement max. | 95(77)L/min |
| Working pressure max. | 1.2Mpa |
| Rated pressure | 0.7Mpa |
| Liner diameter | 80mm |
| Piston stroke | 100mm |
| Power(diesel engine or motor) | |
| Model(Diesel engine) | 1115 |
| Rated power | 16.2KW |
| Rated speed | 2200r/m |
Packing and Shipping:
Our Soil Testing Drilling Rig is carefully packaged to ensure safe delivery to our customers. The rig is first disassembled and all parts are securely wrapped and padded to prevent any damage during transportation. The packaged rig is then placed in a sturdy wooden crate for added protection.
Shipping options are available for both domestic and international customers. We work with trusted shipping carriers to ensure timely delivery of our products. Customers can choose from standard ground shipping, expedited shipping, or air freight depending on their needs and location.
Once the order is processed and the rig is packaged, customers will receive a tracking number to monitor the status of their shipment. Our customer service team is also available to provide updates and answer any questions regarding the shipping process.
For international orders, please note that customers are responsible for any applicable import duties and taxes. We will provide all necessary documentation for customs clearance.
At Soil Testing Drilling Rig, we are committed to providing a seamless and hassle-free shipping experience for our customers. We take pride in ensuring that our products arrive at their destination safely and on time.
