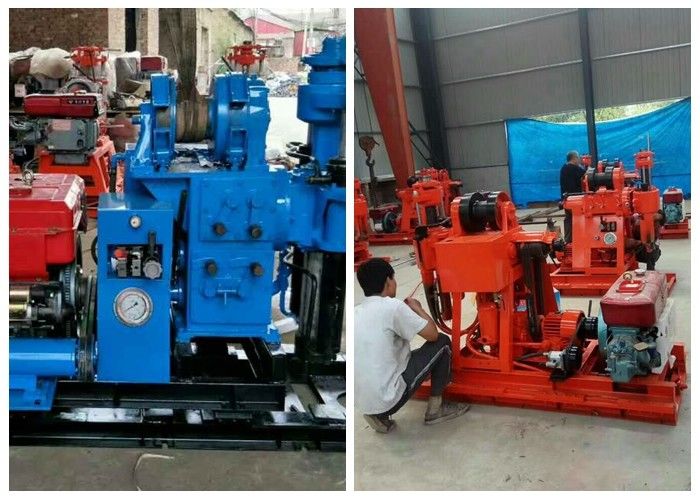

Easy Operated Soil Test Drilling Machine Available for Multi-functional Geology Investigation
Product Applications:
1. Engineering geological survey of railway, hydropower, traffic, bridge, dam foundation and other buildings.
2. Geological core drilling, physical survey.
3. Small grouting Confucius, blasting hole drilling.
4. Small wells drilled.
Product Features:
1 With hydraulic feed mechanism to improve drilling efficiency, reduce labor intensity.
2 The rig is equipped with a card-holding mechanism and a hexagonal active drill pipe. It can be turned down without stopping the machine. High efficiency, convenient and safe.
3 With a pressure gauge at the bottom of the hole to facilitate the control of the situation inside the hole.
4 Handle centralized, easy to operate.
5 Compact structure, small size, light weight, strong decomposition, easy to relocate.
Product Parameters:
| Drilling depth | 200m, 150m, 100m, 70m, 50m, 30m |
| Hole diameter for different depth | 75mm,91mm,110mm,130mm,150mm,300mm |
| Drill rod diameter | 42mm |
| Angle range | 90°-75° |
| Dimensions(L*W*H) | 1710mm*860mm*1360mm |
| Weight(without power unit) | 525KGS |
| Rig traveling device | XY-1B-150 |
| Migration distance | 350mm |
| Distance from a drilling hole | 300mm |
| Swivel Head | |
| Spindle speed(4-speed) | 71,142,310,620r/min |
| Spindle stroke | 450mm |
| Upward displacement speed of idling vertical spindle | 0.05m/s |
| Downward displacement speed of idling vertical spindle | 0.067m/s |
| Spindle pull-down max | 15KN |
| Spindle lifting capacity max | 25KN |
| Spindle Max Torque | 1.5KN.m |
| Brake dia | 278mm |
| Brake belt width | 50mm |
| Hoist | |
| Max.lifting capacity(single rope) | 20KN |
| Hoisting drum linear velocity(two levels) | 0.172,0.345,0.738,1.476m/s |
| Hoisting drum revolution | 20,39,85,170r/m |
| Drum dia | 140mm |
| Wire rope dia | 9.3mm |
| Wire rope capability | 40mm |
| Oil pump | |
| Model | YBC-20/125 |
| Rated pressure | 12.5Mpa |
| Displacement | 20ml/r |
| Rated speed | 800-2500r/min |
| ST-150 water pump | |
| Model | Hydraulic reciprocating single-acting piston pump |
| Displacement max. | 95(77)L/min |
| Working pressure max. | 1.2Mpa |
| Rated pressure | 0.7Mpa |
| Liner diameter | 80mm |
| Piston stroke | 100mm |
| Power(diesel engine or motor) | |
| Model(Diesel engine) | 1115 |
| Rated power | 16.2KW |
| Rated speed | 2200r/m |
