Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Power Type: | Diesel |
|---|---|---|---|
| Usage: | Water Well | Voltage: | Drilling Rig |
| Weight: | 600KGS | Warranty: | 1 Year |
| High Light: | soil testing drilling rig,soil investigation machine |
||

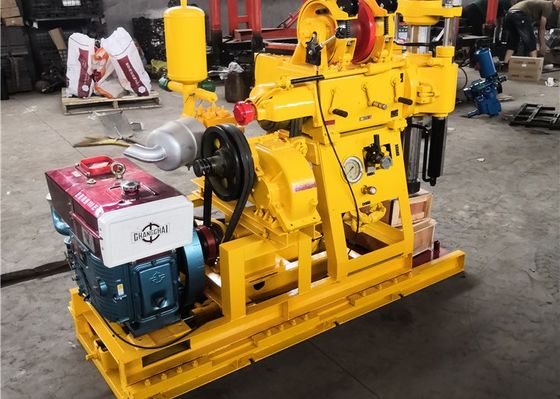

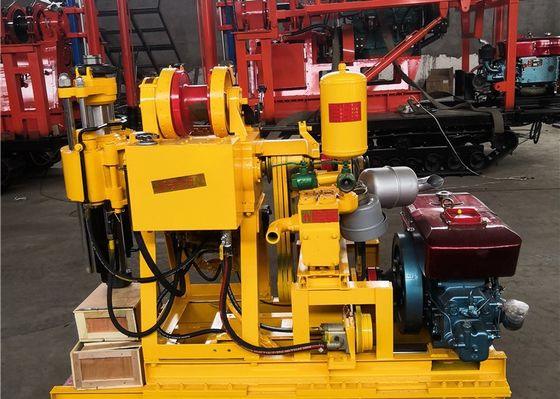

100m Depth Soil Test Drilling Machine for Soil Sample Collecting
Product Advantage:
1. Drilling depth 100m, drilling diameter 75-110mm.
2. Automatic oil pressure feeding function, high drilling efficiency
3. Hydro-chucking instead of slips to ensure drilling none stop drilling when changing pipes.
4. All handle shanks centralized,safe convenient operation.
5. Compact structure, drill rig,pump and diesel engine all installed on one base frame, save space.
6. Light weight, easy transport and applicable to different working conditions in plain and mountain areas.
7. Widely used in general investigation, geophysical exploration, construction of high-way and buildings.
Product Parameter:
| Unity machine parameter | |
| Drilling depth | 130m |
| Max. open hole caliber | 220mm |
| End hole caliber | 75mm |
| Drill pipe caliber | 50mm |
| Drilling angle | 90°~75° |
| Drill weight | 560Kgs |
| Spindle | |
| Spindle speed: | 142,285,570r/min |
| Spindle stroke: | 450mm |
| Hoist | |
| Max. lifting capacity: | 1600Kgs |
| Single line lifting speed: | 0.41,0.82,1.64m/s |
| Reel caliber: | 140mm |
| Tightrope caliber: | 13mm |
| Tightrope size: | 27mm |
| Mud pump | |
| Type: | Horizontal single-urn double action |
| Flow Diesel engine/Electric motor: | 95/97L/min |
| Max. pressure: | 1.2Mpa |
| Work pressure: | 0.7Mpa |
| Water inlet diameter: | 30mm |
| Water outlet diameter: | 20mm |
| Triangle conveyer belt: | B1575mm |
