Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Power Type: | Diesel |
|---|---|---|---|
| Usage: | Water Well | Voltage: | Diesel Engine Driven |
| Power(W): | 13.4KW | Dimension(L*W*H): | 1960x850x1340mm |
| Weight: | 480KGS | Warranty: | 1 Year |
| Highlight: | soil testing drilling rig,soil investigation machine |
||

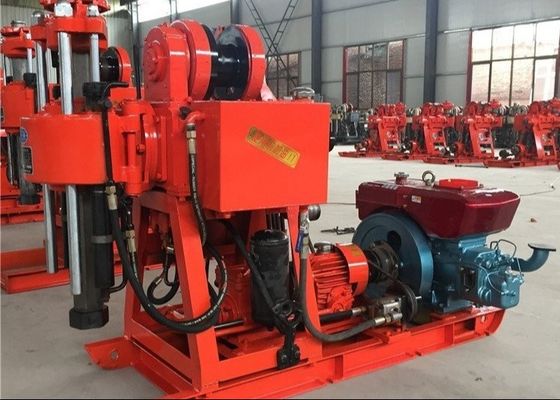

Middle And Shallow Hole Soil Test Drilling Machine for Geotechnical Investigation Purpose
Product Advantage:
ST-100 Soil Test Drilling Machine is small and light weighted, mainly used in shallow and medium deep diamond tungsten carbide core drilling, can also be used in engineering geological, hydro-geological, water well and pile grouting hole drilling.
Product Parameter:
| XY-1 Type | |||
| Drill | Swivel Head | ||
|
Drilling depth
|
Max.100 |
Spindle speed
|
142,285,570(r/min)
|
|
Hole diameter
|
Max.110m | Spindle stroke | 450kmm |
| Drill rod diameter | 42mm | Spindle pull-down | Max.15KN |
| Angle range | 90°~75° | Spindle lifting capacity | Max. 25KN |
| Oil pump | Water pump | ||
| Model | YBC-12/80 | Model | Gear oil pump |
| Rated pressure | 12.5Mpa | Working pressure | 0.7-1.2Mpa |
| Flow speed | 8ml/r | ||
| Rated speed | 800-2500r/min | ||
| Hoist | Power(diesel) | ||
| Max. lifting capacity | 10KN | Model(diesel engine | 1105 |
| Hoisting drum revolution | 55,110,220(r/min) | Rated power | 12.1KW |
| Drum diameter | 145mm | Rated speed | 2200 r/min |
| WEIGHT | 500kg | ||
| SIZE | 1640*1030*1440mm | ||
Characteristics of drilling rig
1. It improves drilling efficiency and reduces labor intensity With hydraulic automatic feeding mechanism.
2. It can be achieved without stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism orhydraulic chuck.
3. It has hole bottom pressure gauge to be easy to master the situation in the hole.
4. It also has advantage of Compact structure, concentrated handle, small footprint, light weight, strong decomposition, easy tomove. It can be operated in plains and mountain areas.
FAQ
Q1. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q4. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1year warranty, during this time all accessories.broken can be changed for a new one.And we provide videos for machine install and operation.
Q5. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q6. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q7.Do you provide wear parts for transacted clients?
Ans.: Yes, and will prefer provid ing accessories to clients.
