| Condition: | New | Type: | Core Drilling Rig |
|---|---|---|---|
| Power Type: | Diesel | Usage: | Water Well |
| Voltage: | 380V | Warranty: | 1 Year |
| High Light: | dth drilling machine,water borehole drilling machine |
||

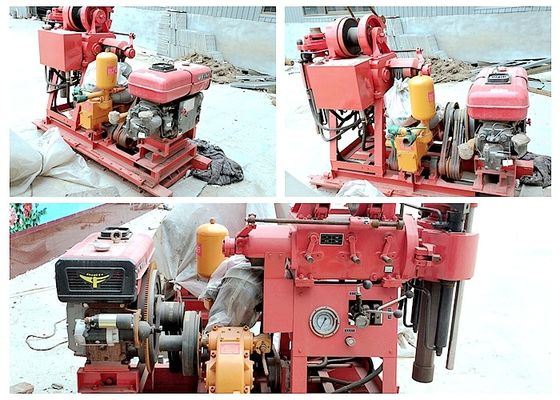

Small Sized Geological Drilling Rig Machine for Mineral Exploration
Product Description:
It is a kind of small volume, lightweight shallow hole drill. It is used for diamond and alloy aperture size of core drilling, can be also used for geological exploration, hydrology, water wells, and large caliber engineering construction(micro pile foundation pile hole drilling). It has the advantages of light weight, excellent quality, high power drill, extensive performance, versatility and so on.
Product Parameter:
| 1.Overall parameters | |
| Drilling depth | 150m |
| Borehole Diameter | 400~75mm |
| Diameter of drill rod | 50mm |
| Drilling angle | 90~75° |
| Weight(not include power) | 760kg |
| Dimension | 2000*1000*1400mm |
| 2. Vertical Spindle | |
| Rotating speed | 140,295, 470,790,1010 r/min |
| Feeding stroke | 450mm |
| Max. Feeding force of spindle | 15 KN |
| Max. Lifting capability of spindle | 25 KN |
| Max. Torque | 0.5 KN.m |
| 3.Hoist | |
| Max. single line hoisting capacity | 1600Kg |
| Diameter of wire rope | 12mm |
| Volume of winding drum | 35m |
| Hug floodgate caliber | 245mm |
| Hug floodgate belt width | 70mm |
| 4.Mud pump | |
| Type | Horizontal single urn twin-action |
| Rate of flow | 95/77 L/min |
| MAX. pressure | 1.2MPa |
| Working pressure | 0.7MPa |
| 5.Power (either-or choice) | |
| Diesel engine ZS1115 | 18HP, 2200r/min |
| Electrical motor Y-160-4 | 11KW, 1460r/min |
