BW Series Electric Drilling Mud Pump For Water Well Drilling 220V/380V

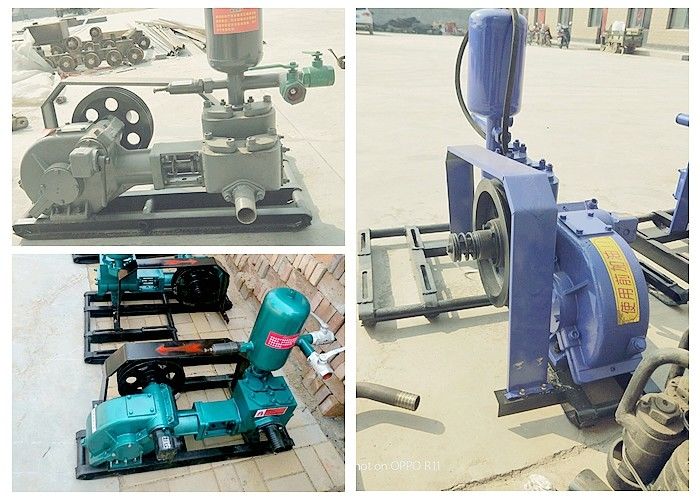

Large Image : BW Series Electric Drilling Mud Pump For Water Well Drilling 220V/380V

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	BW250

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-12 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Place Of Origin:	China	Structure:	Piston Pump
Power:	Electric	Pressure:	High Pressure
Theory:	Reciprocating Pump	Voltage:	220V/380V
Warranty:	1 Year
Highlight:	portable mud pump , reciprocating mud pump

BW Series Electric Drilling Mud Pump For Water Well Drilling 220V/380V

Product Specifications

Attribute	Value
Place of Origin	China
Structure	Piston Pump
Power	Electric
Pressure	High Pressure
Theory	Reciprocating Pump
Voltage	220V/380V
Warranty	1 Year

Product Overview

The BW Series Drilling Mud Pump is a high-performance solution for water well drilling applications, offering reliable operation and versatile functionality.

Key Features

Widely used for grouting and mud jacking in engineering construction projects
Four gear shifts for adjustable output and drilling depth
Suitable for grouting cement slurry or integration with drilling machines
Applications include railway, hydraulic engineering, metallurgical projects, building construction, and geological exploration
Horizontal three-cylinder reciprocating single-acting piston pump design
Low energy consumption with flexible operation
High-quality construction for durability and easy maintenance
Can be used for core drilling rig slurry transport, mine drainage, and long-distance water supply

Technical Parameters

Model	BW150	BW160	BW250	BW320
Max. Flow rate	150L/Min	160L/Min	250L/Min	320L/Min
Max. pressure	7Mpa	10Mpa	6Mpa	8Mpa
Power	7.5KW	11KW	15KW	30KW
Inlet pipe diameter	51mm	51mm	76mm	76mm
Outlet pipe diameter	32mm	32mm	51mm	51mm
Weight	480kg	560kg	760kg	1000kg
