High Efficient Electric Mud Pump For Water Well Drilling Rig BW250

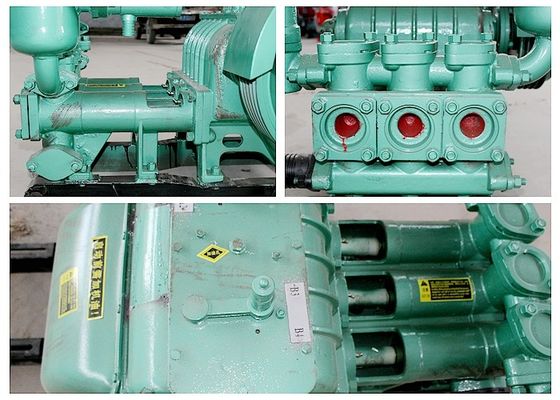

Large Image : High Efficient Electric Mud Pump For Water Well Drilling Rig BW250

Product Details:

Place of Origin:	China
Brand Name:	JINZHOU SHITAN
Certification:	ISO
Model Number:	BW250

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Standard Export Package
Delivery Time:	7-12 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	2000 sets per year

Contact Now

Detailed Product Description

Type:	Horizontal Piston Pump	Model Number:	BW250
Product Name:	Mud Pump	Cylinder Diameter:	80mm
Piston Stroke:	100mm	Max. Flow:	250L/min
Max. Pressure:	6MPa	Dimensions:	1000995650
Weight:	760kg
Highlight:	portable mud pump , reciprocating mud pump

High Efficient Electric Mud Pump For Water Well Drilling Rig BW250

Product Overview

The BW250 mud pump is a horizontal three-cylinder reciprocating single-acting piston pump designed for core drilling operations. This versatile pump is also suitable for grouting, mine sewage management, and long-distance water supply applications.

Key Specifications

Attribute	Value
Type	Horizontal piston pump
Model Number	BW250
Cylinder diameter	80mm
Piston Stroke	100mm
Max. flow	250L/min
Max. pressure	6MPa
Dimensions	1000×995×650 mm
Weight	760kg

Product Features

High-efficiency design: Horizontal triplex grout pump with exceptional stability and high pressure capability
Versatile operation: Eight gear shifts for precise flow adjustment with large output capacity
Durable construction: High-quality components with minimal wearing parts for extended service life
Optimized performance: Fast suction-discharge speed with high pump efficiency
Environmentally friendly: Low noise and dust emissions for cleaner operation

Technical Parameters

Parameter	Value
Type	Horizontal three cylinder reciprocating single acting piston pump
Pump speed (min-1)	200 \| 116 \| 72 \| 42
Flow (L/min)	250 \| 145 \| 90 \| 52 \| 166 \| 96 \| 60 \| 35
Pressure (MPa)	2.5 \| 4.5 \| 6 \| 6 \| 4 \| 6 \| 7 \| 7
Power (KW)	15
