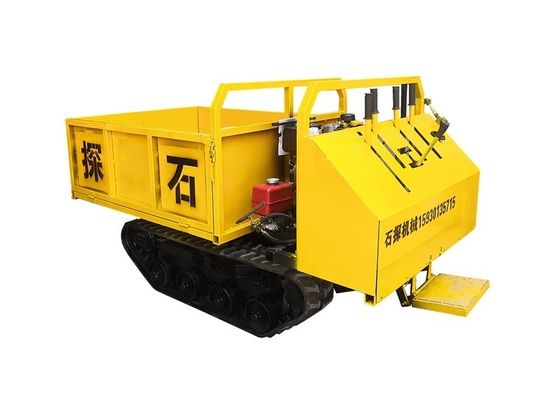

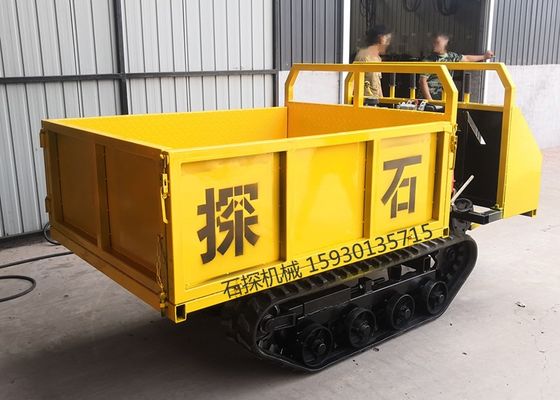

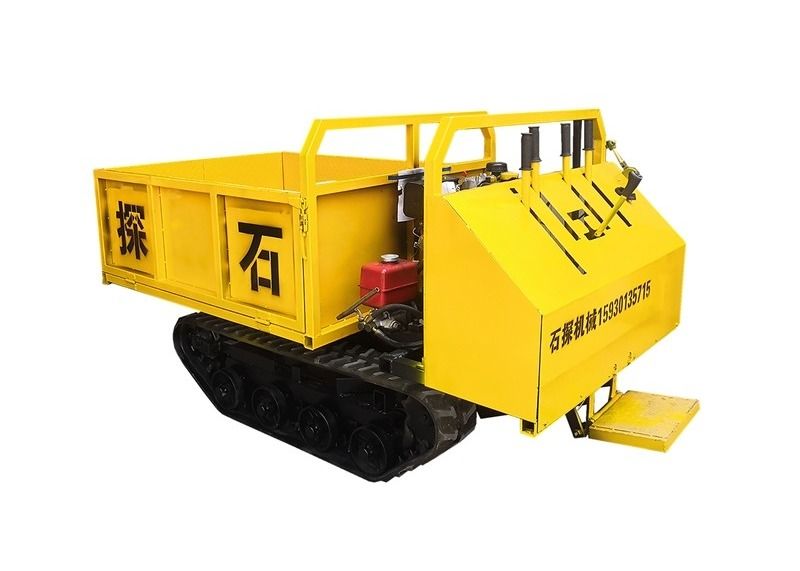

Mini dumper is mainly composed of hopper and walking chassis,Through material in gravity or hydraulic cylinder thrust tilting unloading.Discharge according to the different azimuth,Front to discharge,Rotary discharge,Rollover unloading,High fulcrum discharge,Lift tilting discharge and so on.
Product parameters
| Type : 1.5T |
Bucket size: 1500*1100*500 mm |
| Size: 2400*1100*1400mm |
Crawler material: Rubber material |
| Track ground length: 1500mm |
Loading &unloading method: Hydraulic dump |
| Motor size: 186 |
Gear type: drawbar |
| Gear: +3 forward gear+1 reverse gear |
The height from the bottom of the bucket to the ground: 500 mm |
| Steering method: Clutch brake steering |
Start method: Electric start |
| Standing slope angle: 35 degree |
Crawler width: 720mm |
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
All-Terrain Tracked Carrier
Tracked carrier is also called hydraulic crawler dump truck or crawler dumper. It is very popular for the complex road conditions such as swamp, river bank, desert, paddy field, tropical rain forest, snow field and ice, muddy construction site and other complete topography. The wide crawler has small pressure to the ground, so it can go thorough easily even with heavy load.
It has good performance and strong ability to climb slope. The tracked carrier is compact and flexible which is very easy to operate.
Hydraulic lifting and unloading greatly reduce labor intensity and improve transportation efficiency.
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
Good quality, professional after-sales service, welcome to order
